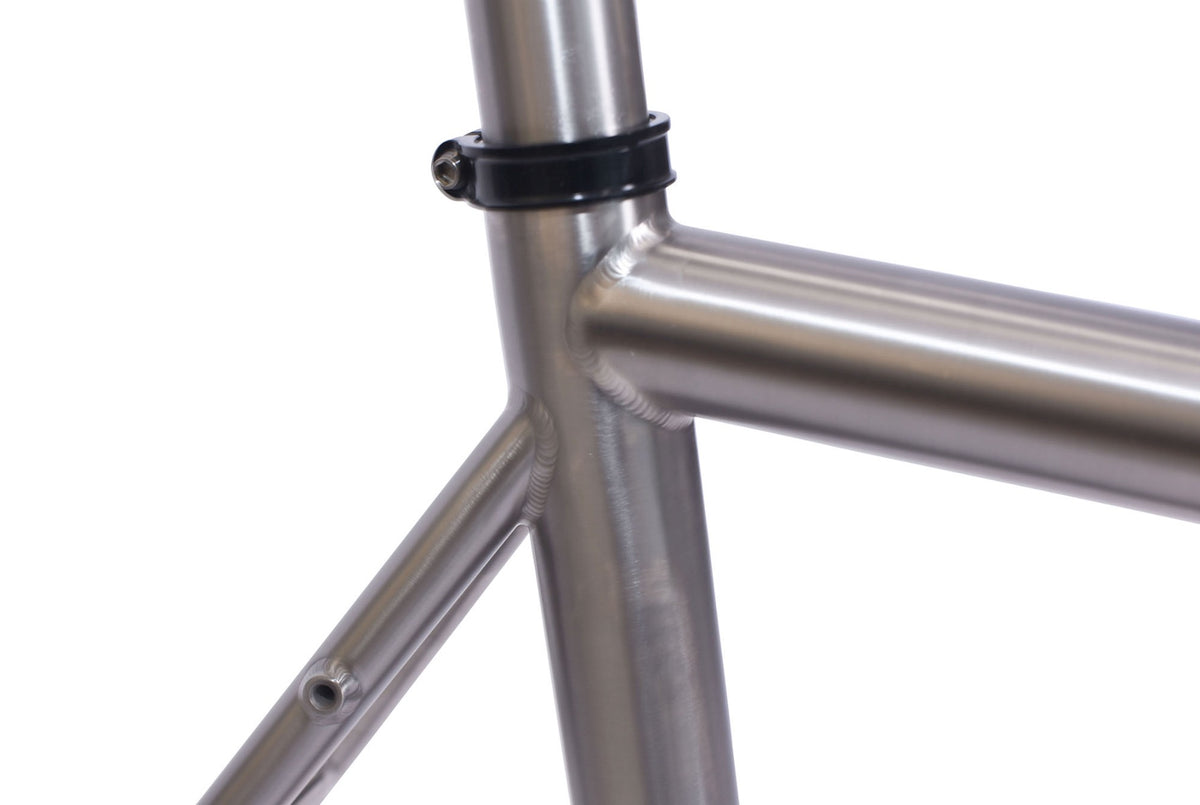

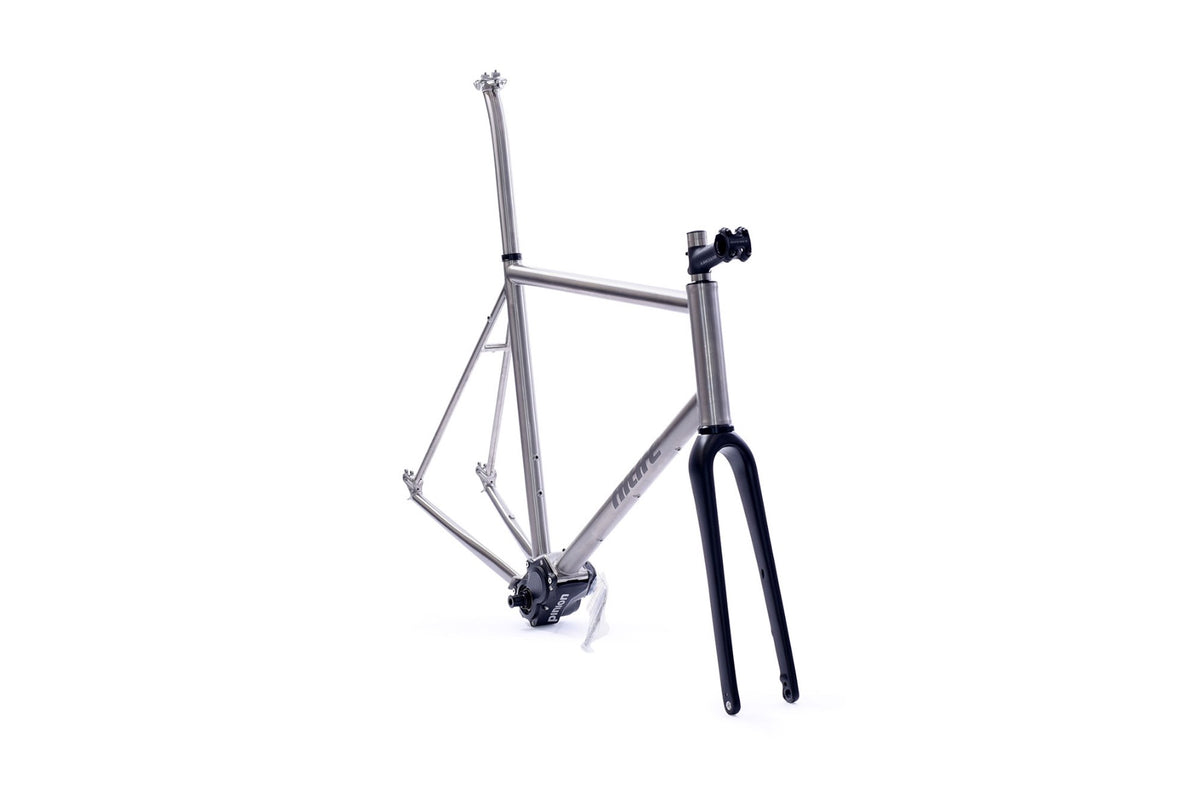

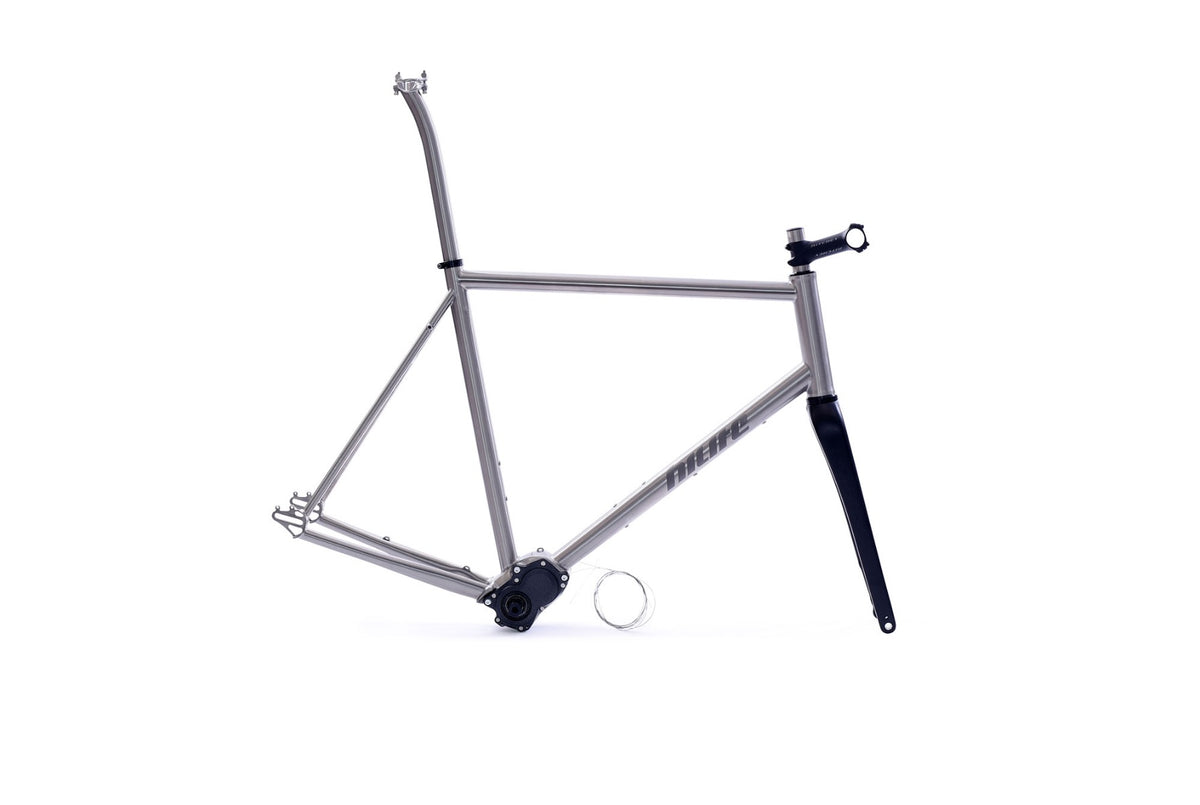

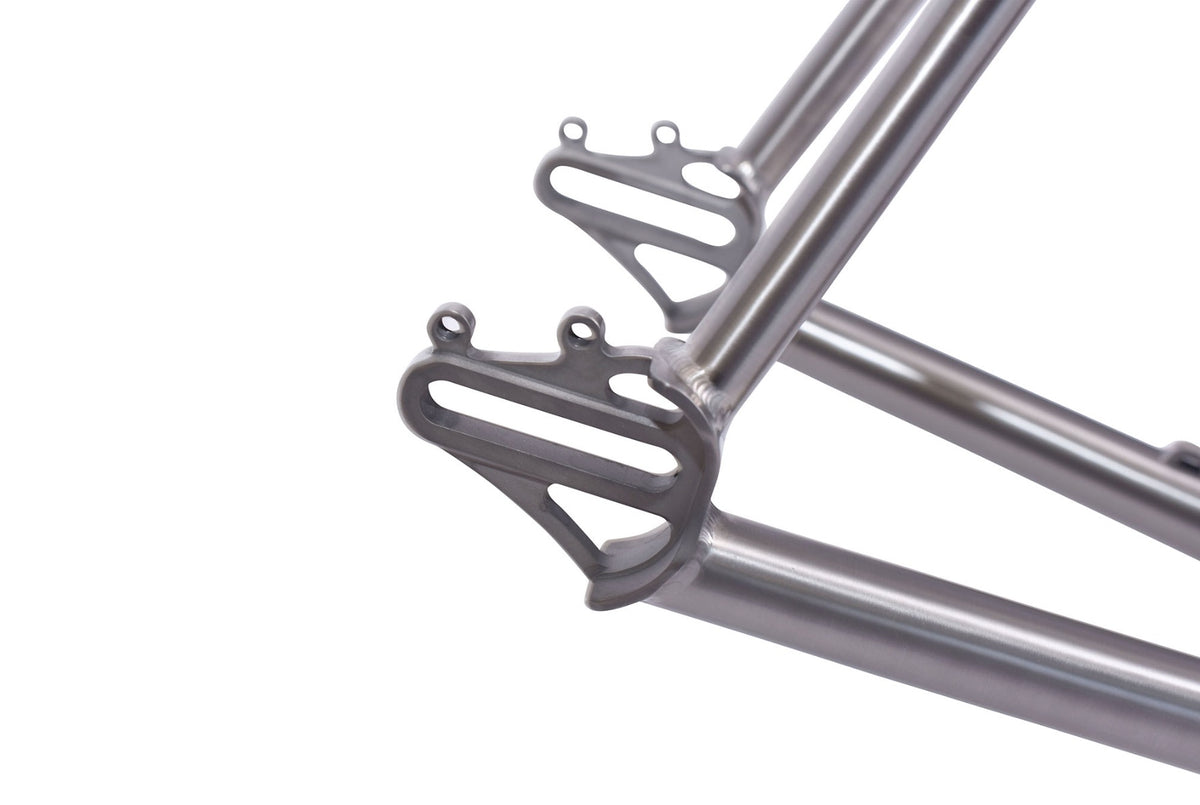

Your hilite is the HILITE s Pinion Gravel Allroad Titanium frame
Build up the most versatile bike for you with our s Pinion Gravel Allroad Titanium frame.
Geometry
Frame size
| Measurement |
Unit |
XXS – 46 (27.5″) |
XS – 48 |
S – 52 |
M – 54 |
L – 56 |
XL – 58 |
XXL – 61 |
| Top tube length |
mm |
520 |
528 |
528 |
549 |
570 |
591 |
625 |
| Seat tube length |
mm |
450 |
480 |
520 |
540 |
560 |
580 |
610 |
| Chainstay length |
mm |
415 |
435 |
435 |
435 |
435 |
435 |
435 |
| Seat tube angle |
° |
70.5 |
73.5 |
72.5 |
72.5 |
72.5 |
72.5 |
72.5 |
| Head tube angle |
° |
60 |
68 |
69.5 |
71 |
72.5 |
72.5 |
71 |
| Fork axle-to-crown length |
mm |
395 |
395 |
395 |
395 |
395 |
395 |
395 |
| Head tube length |
mm |
120 |
120 |
105 |
130 |
155 |
180 |
210 |
| BB drop |
mm |
60 |
70 |
70 |
70 |
70 |
70 |
70 |
| Stack |
mm |
548 |
534 |
525 |
554 |
593 |
617 |
645 |
| Reach |
mm |
365 |
368 |
361 |
373 |
386 |
397 |
404 |
| Standover height |
mm |
752 |
750 |
780 |
805 |
829 |
855 |
881 |
| Fork offset |
mm |
47 |
50 |
50 |
50 |
50 |
50 |
50 |
The original table lists a head tube angle of 60° for XXS. This unusual value requires confirmation.
Price options
| Option |
Configuration |
Price adjustment |
| Frame size |
XXS |
No surcharge |
| Frame size |
XS |
No surcharge |
| Frame size |
S |
No surcharge |
| Frame size |
M |
No surcharge |
| Frame size |
L |
No surcharge |
| Frame size |
XL |
No surcharge |
| Frame size |
XXL |
No surcharge |
| Fork |

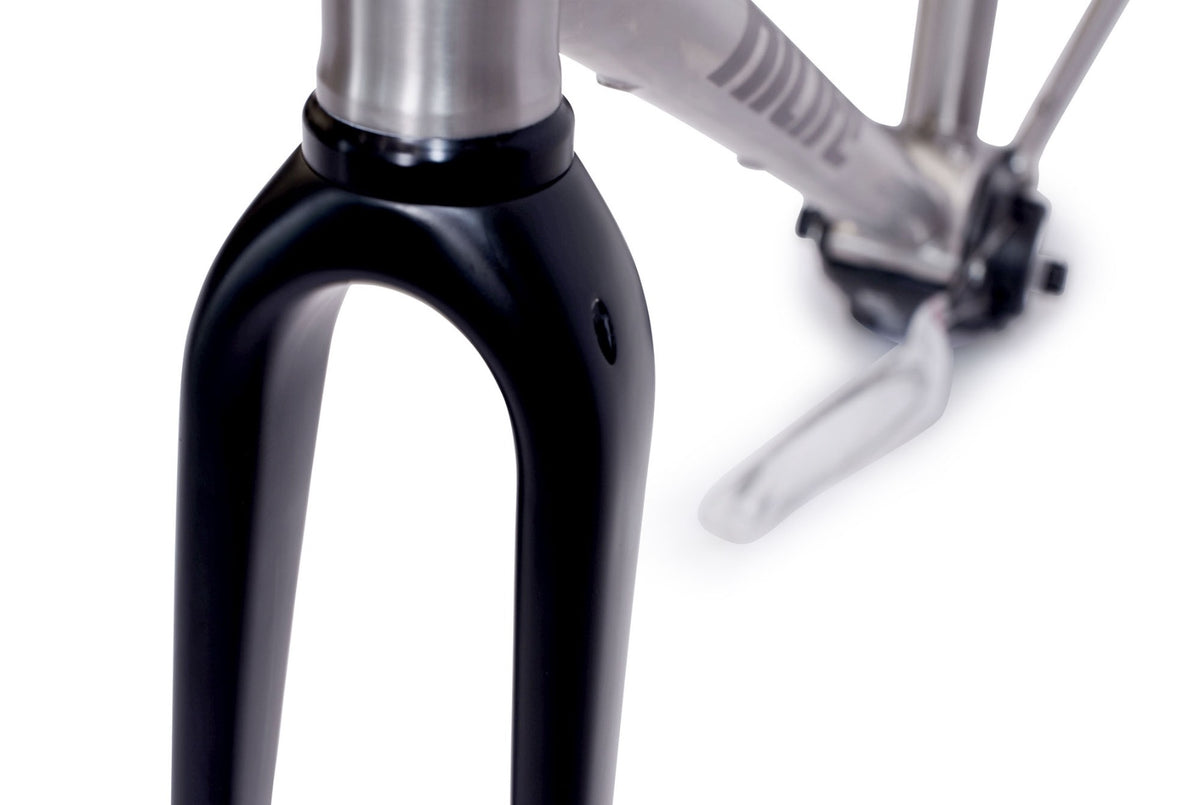

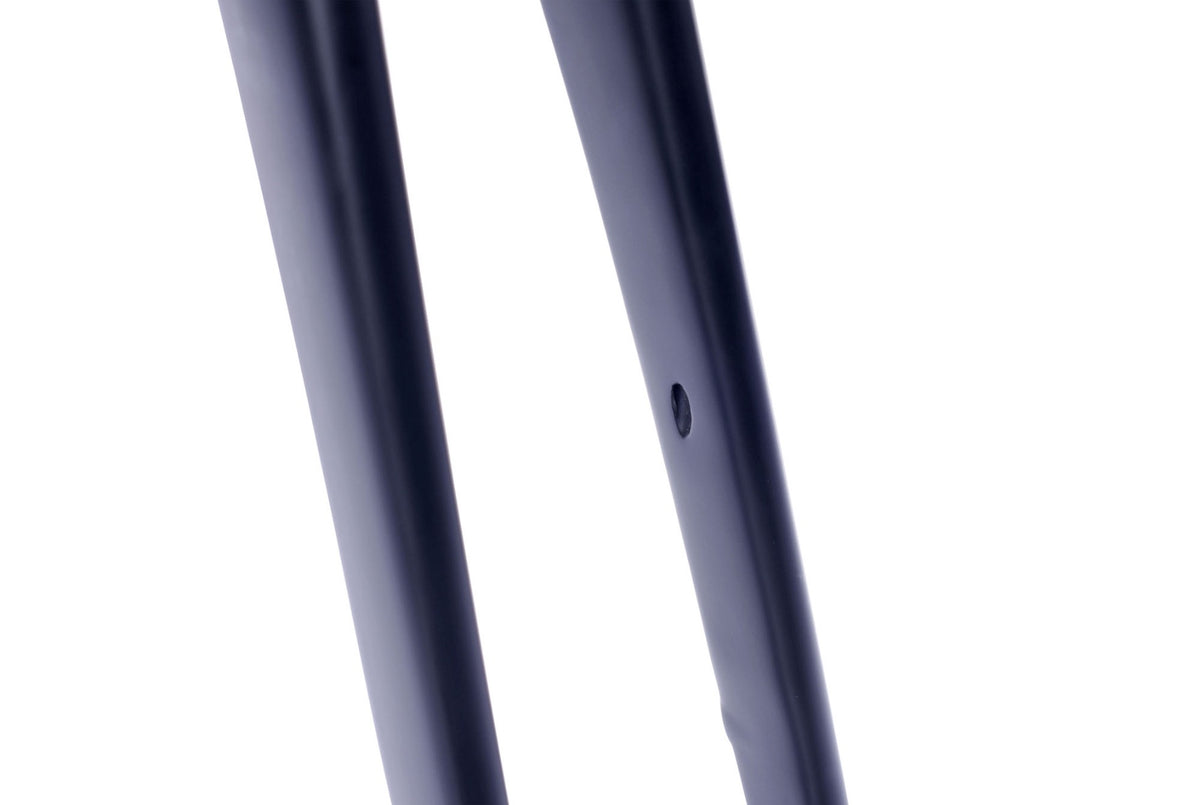

HILITE Titanium 12 mm |
No surcharge |
| Fork |
HILITE Titanium 15 mm |
No surcharge |
| Groupset |

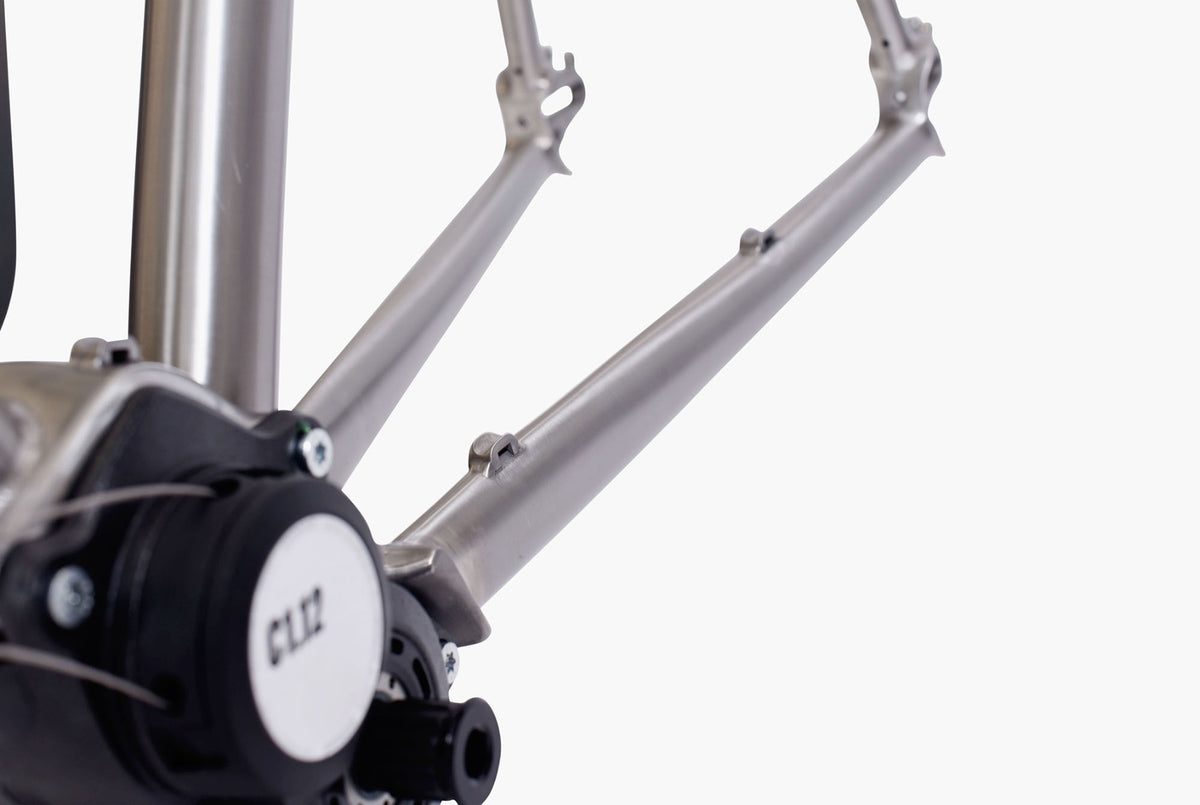

Pinion C1.12 & forged crank |
No surcharge |
| Groupset |
Pinion P1.18 (black/silver) & forged crank |
+410.00 CHF |
| Groupset |
Pinion P1.18 (colour) & forged crank |
+750.00 CHF |
