Tailored to you.
Lug angles and tube lengths are matched to your measurements, riding position and intended use.
MASTERPIECE / ALLROAD & ROAD

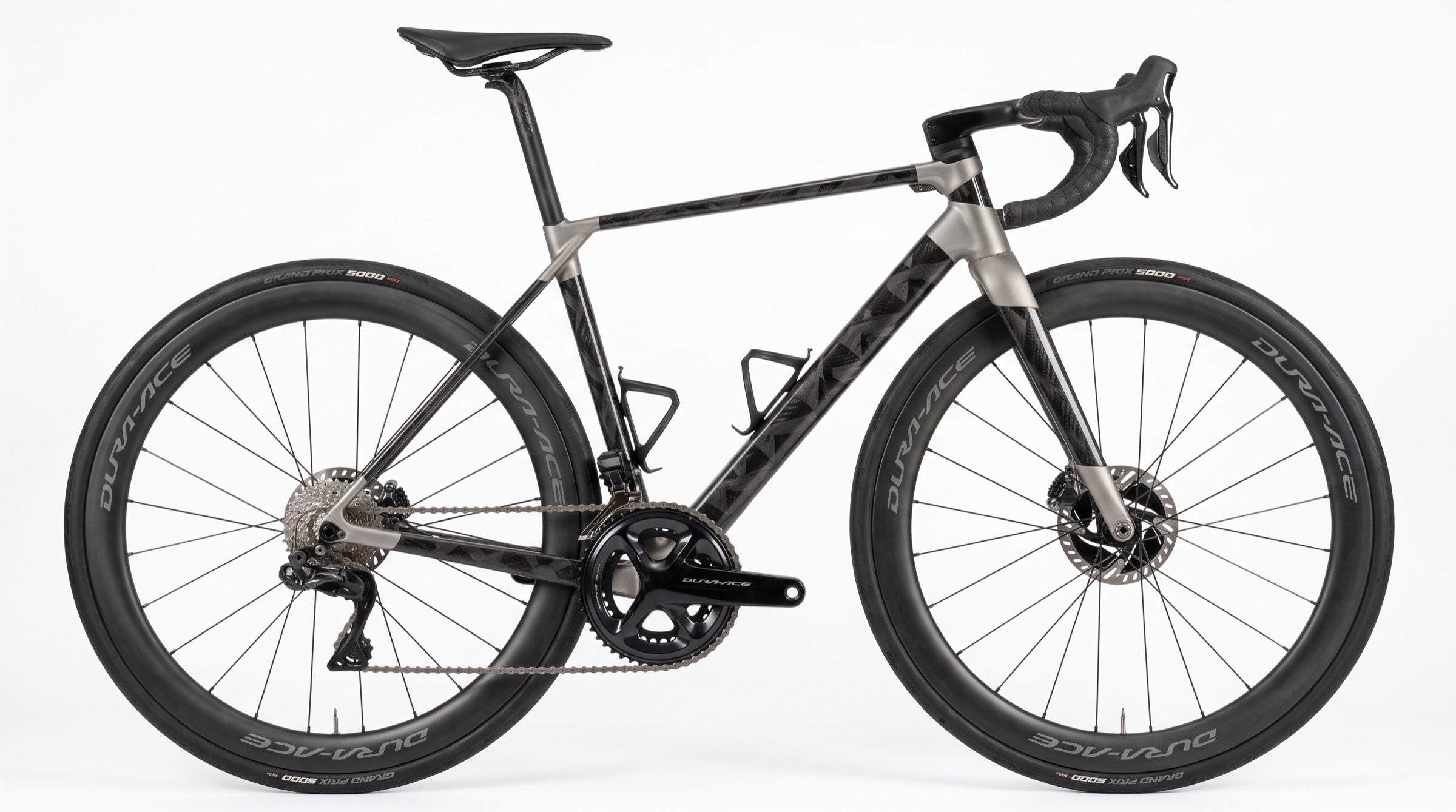

Titanium-Carbon.
Made to measure.
Two materials. One frame for you.
3D-printed titanium lugs meet filament-wound carbon tubes. Your made-to-measure allroad frame is built in Basel, tailored to your position and riding.
Your version
CHF 6,500.00
Made-to-measure frameset · tax included
Your equipment
Equipment options apply to complete bikes. Frameset preferences are discussed in consultation.
Equipment preferences are included in your enquiry. We agree on the final combination and quotation with you.
Equipment options could not be loaded. Please reload the preview.
Availability and delivery date to be confirmed personally.
Enquire about your build Book a consultation in BaselYOUR FOUNDATION
Precision meets custom geometry.
Titanium at the joints.
Individually designed, 3D-printed titanium lugs connect carbon tubes made specifically for HILITE.
Carbon in the tubes.
Filament-wound carbon tubes with fibre paths and dimensions designed for the frame.
DESIGN & MANUFACTURING

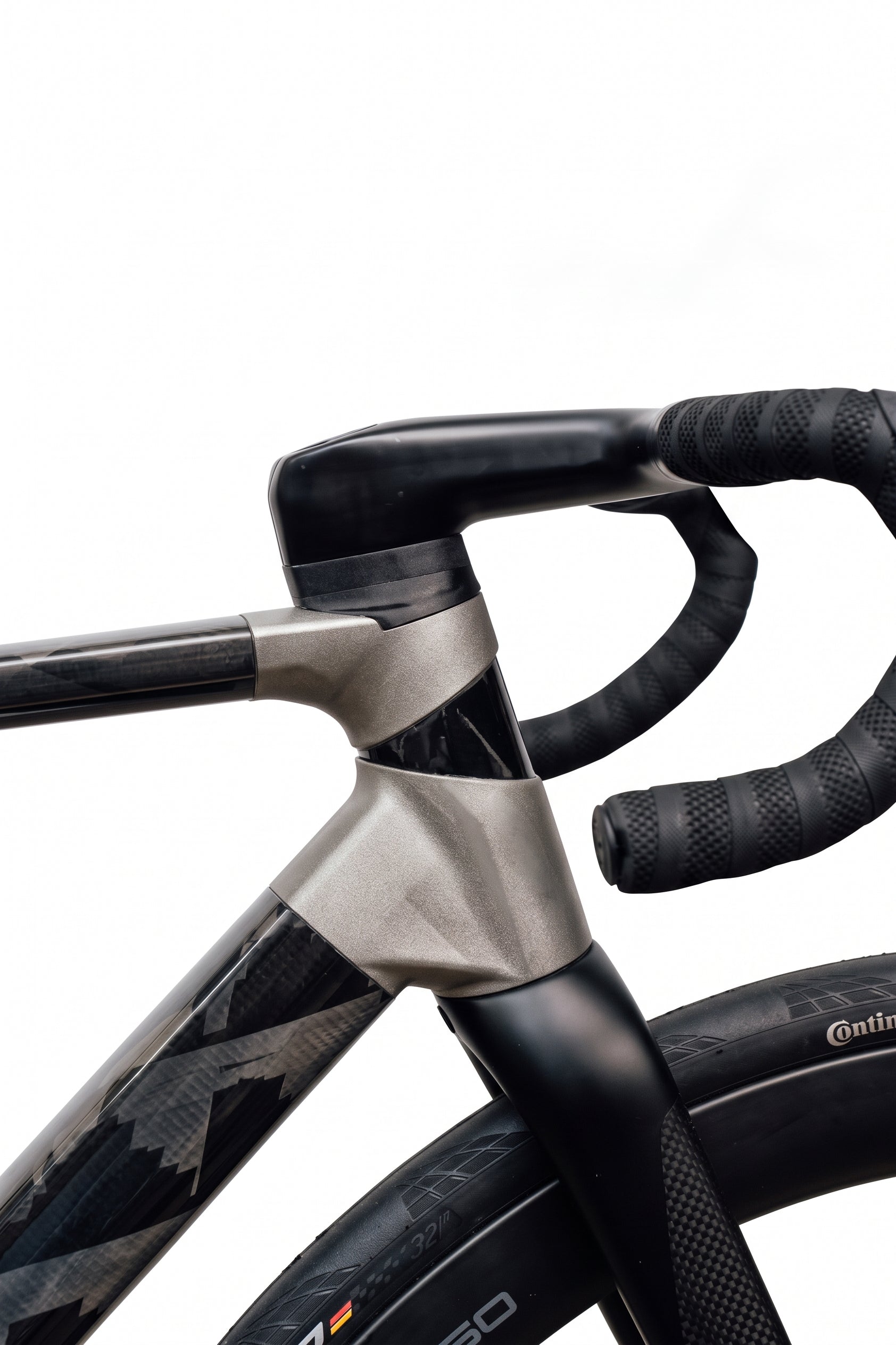

Two materials. Precisely joined.
Titanium lugs are additively manufactured, and carbon tubes are produced by filament winding. In our Basel workshop, we coordinate geometry, cut the tubes and structurally bond them to the lugs.

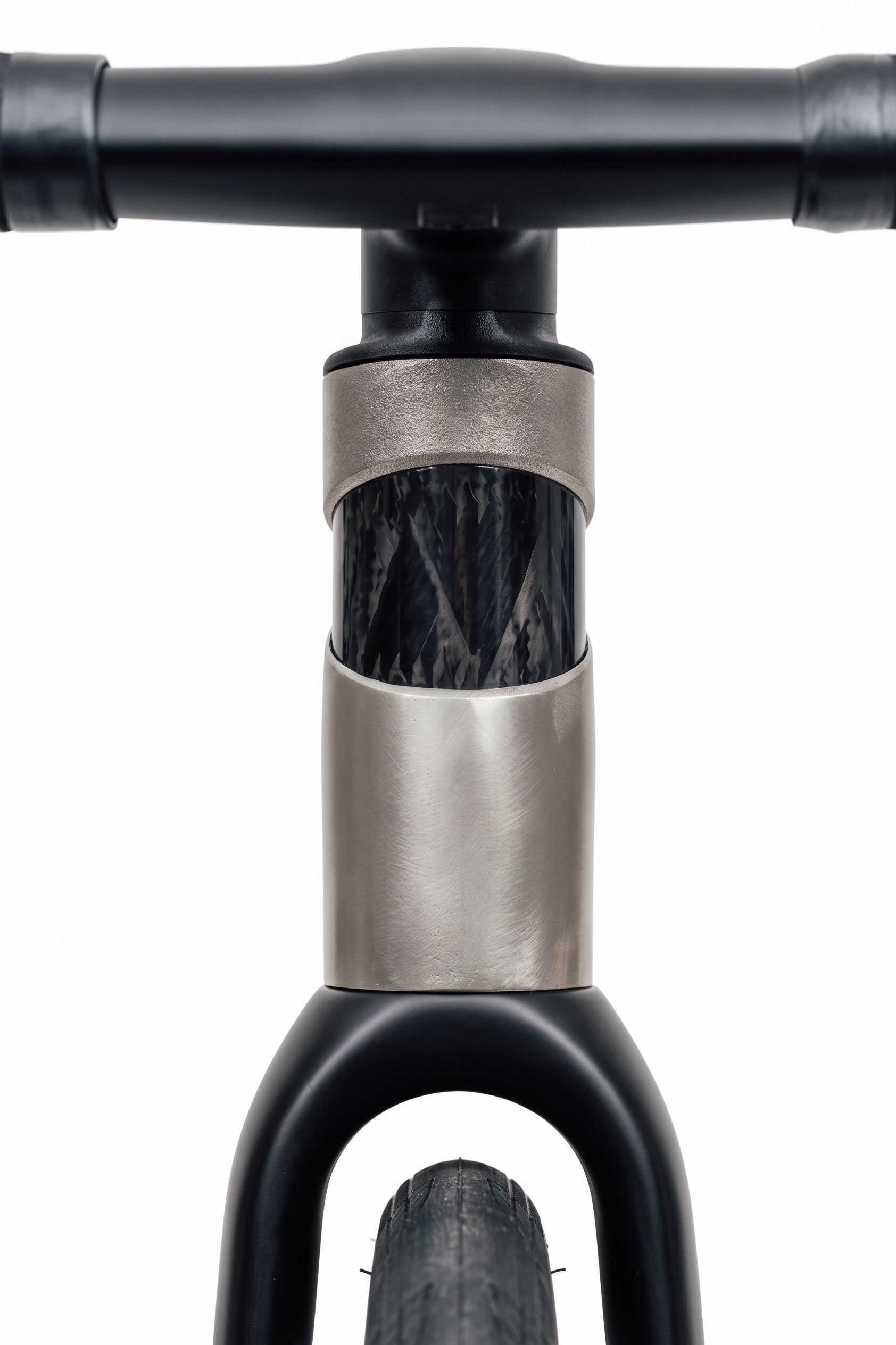

Titanium lugs, designed for the frame.
Head tube, bottom bracket and seat clusters are made from Ti-6Al-4V. Wall thicknesses, reinforcements and lug angles are designed for the frame.

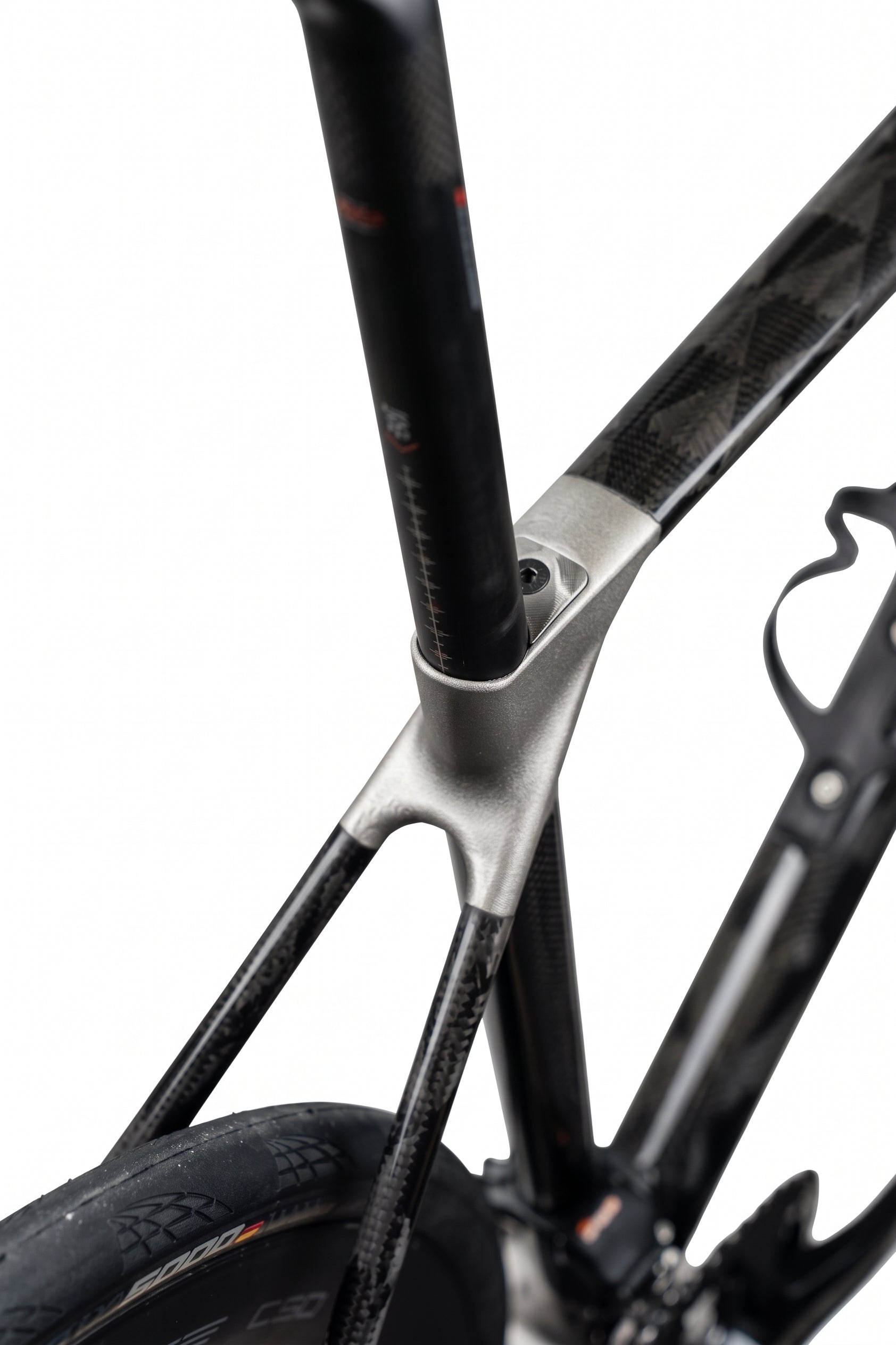

The seat cluster. Precisely joined.
The titanium lug connects the carbon top tube, seat tube and rear triangle. The seatpost clamp is integrated into the seat cluster.

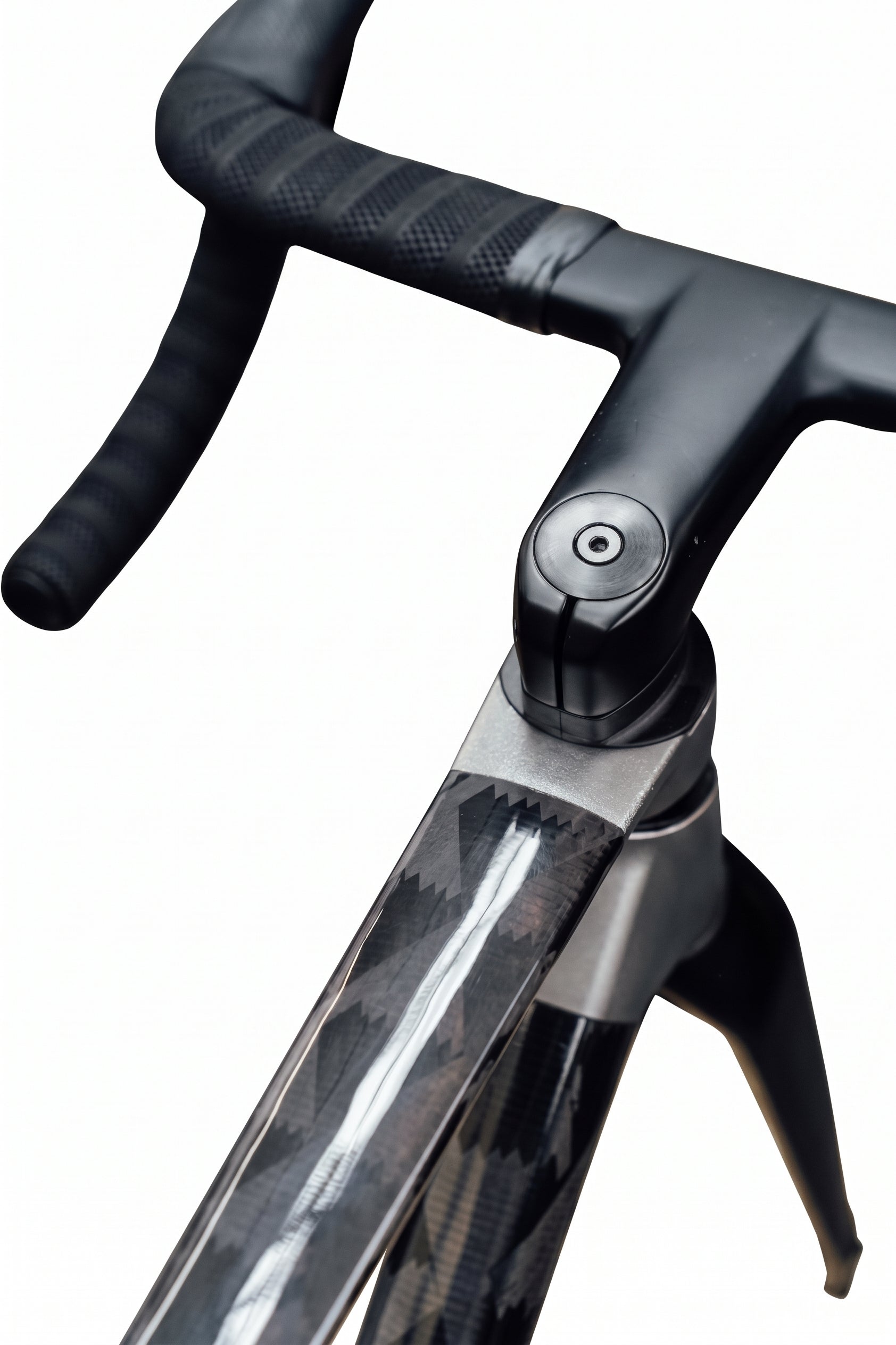

Carbon cockpit. Clean lines.
An integrated carbon bar and stem is included with the frameset. Dimensions and riding position are agreed alongside your custom geometry.

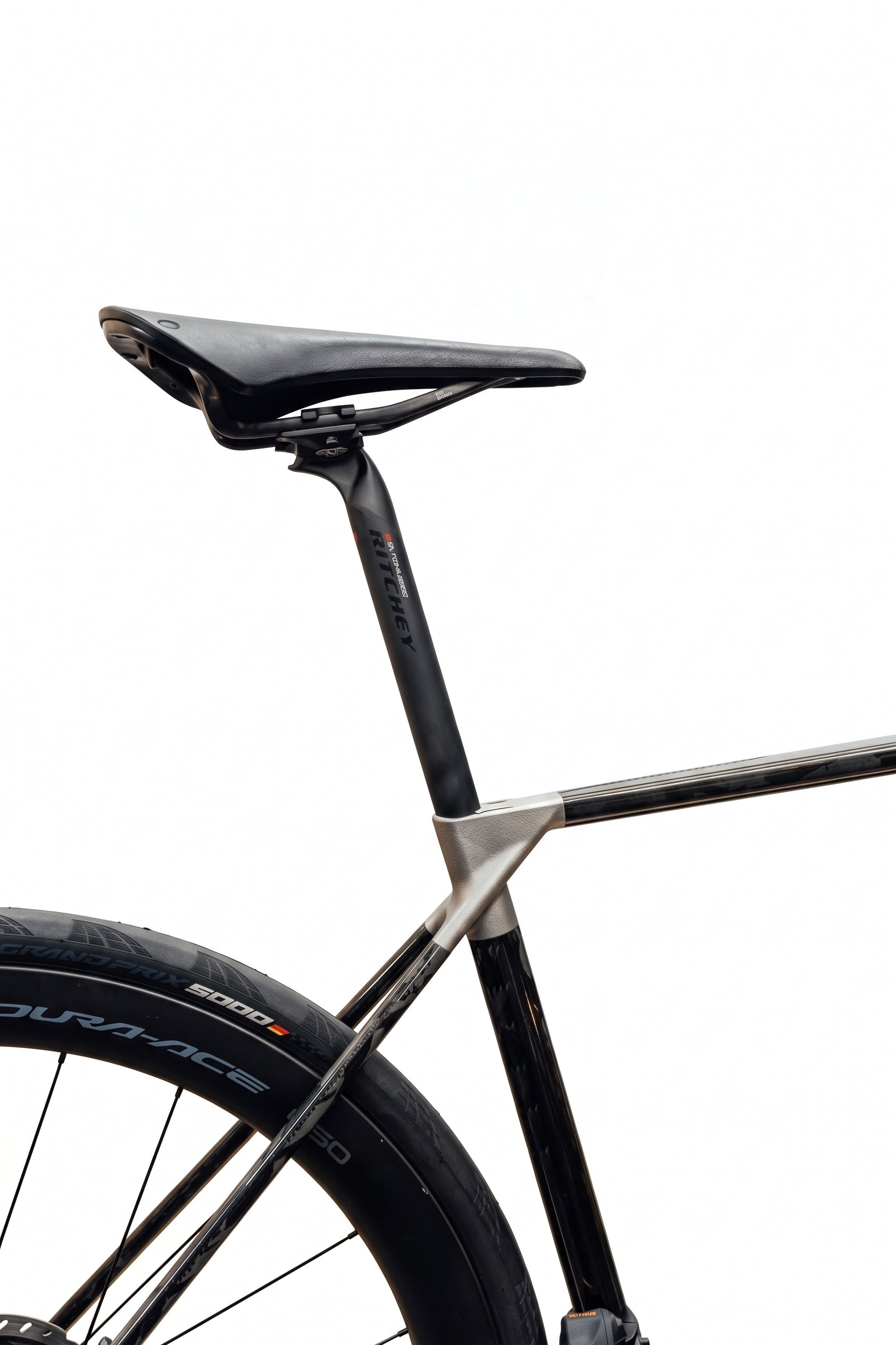

Your position. Your build.
Saddle and seatpost complement your individual geometry. We agree on the final components with you; the Flagship build includes a carbon seatpost.
FRAMESET OR COMPLETE BIKE
Your foundation. Your build.
Framesets include frame, fork, headset, thru-axles and an integrated carbon bar and stem. Complete-bike examples provide the starting point for your individual quotation.
Frameset
Made-to-measure frame geometry and an integrated carbon bar and stem. Choose a standard full-carbon fork or a custom carbon-titanium fork with individual rake and axle-to-crown length.
From CHF 6,500.00
Allroad Performance
Example build with Shimano Ultegra Di2 or SRAM Force AXS. The specific groupset and other components are agreed with you.
From approx. CHF 11,500.00
Allroad Flagship
Ready-to-ride example build with Shimano Dura-Ace Di2, a carbon seatpost, 35 mm deep carbon wheels and an integrated carbon bar and stem. Final equipment agreed in consultation.
From approx. CHF 14,500.00
MADE TO MEASURE
Your body. Your frame.
We discuss measurements, riding and position. From there, we develop your frame geometry, lug angles and tube set.
- 1
Discuss
Agree on riding profile, position and preferred version.
- 2
Design
Coordinate geometry, tubes and lug angles in CAD.
- 3
Join and assemble
Join titanium and carbon parts in Basel. Finish and equipment as agreed.
THE FOUNDATION
Titanium-Carbon, in detail.
These details apply to this allroad model. Complete-bike components are agreed for each build.
- Frame
- 3D-printed titanium lugs and filament-wound carbon tubes
- Titanium lugs
- Ti-6Al-4V
- Geometry
- Made to measure
- Bottom bracket
- T47
- Tyre clearance
- Up to 38 mm for the Allroad version
- Frame weight
- Approx. 1,000-1,200 g, depending on geometry and version
- Fork
- Standard full carbon or custom carbon-titanium with individual rake and axle-to-crown length
- Manufacturing
- Basel, Dreispitz
Questions about your Titanium-Carbon.
What does the frameset include?
Frame, fork, headset, thru-axles and an integrated carbon bar and stem. Made-to-measure frame geometry is included with both frameset versions.
What is the difference between the forks?
The standard version uses a full-carbon fork. Rake and axle-to-crown length are individually specified for the custom carbon-titanium fork. We discuss which version suits your build.
Are complete-bike prices binding?
They are indicative prices for example builds. Specific components, contents and final price are agreed in a personal consultation before ordering.
Can I change the equipment?
Fork, components and finish are tailored to your riding. We discuss suitable combinations and their prices for your build.
How wide can the tyres be?
The current model description specifies up to 38 mm tyre clearance for the Allroad version. We agree on the specific tyre and wheel combination with you.
When will my frame or bike be ready?
Delivery timing, measurement and payment terms are agreed in your personal consultation. You receive a quotation for the agreed build.
Can I add a lighting system?
Yes. The lighting package includes SON 29s, Ladelux and an LED rear light and costs an additional CHF 1’000. Wheel build and compatibility are agreed with you.
YOUR NEXT STEP
Your build starts with a conversation.
Bring your selected version to the consultation. Tell us about your riding and equipment preferences so we can agree on a suitable combination.
Book a consultation in Basel ↗CHF 6,500.00Enquire about your build ↗
