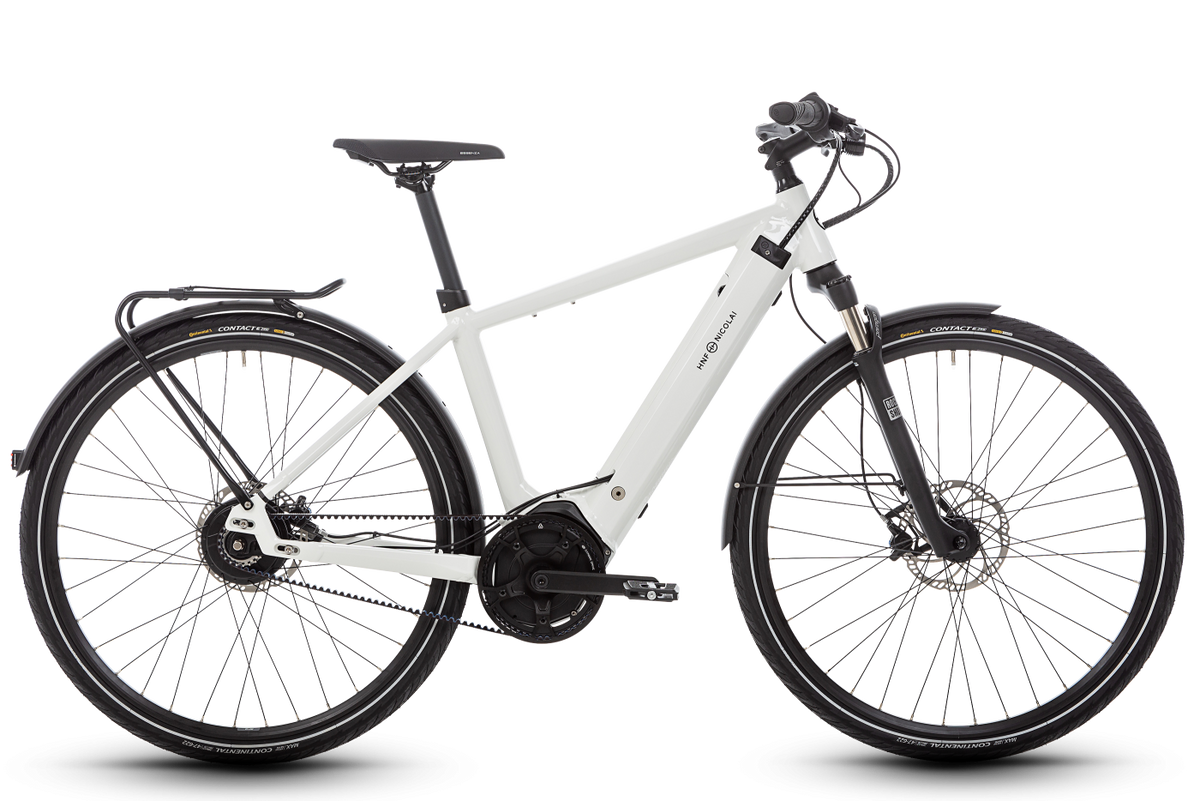

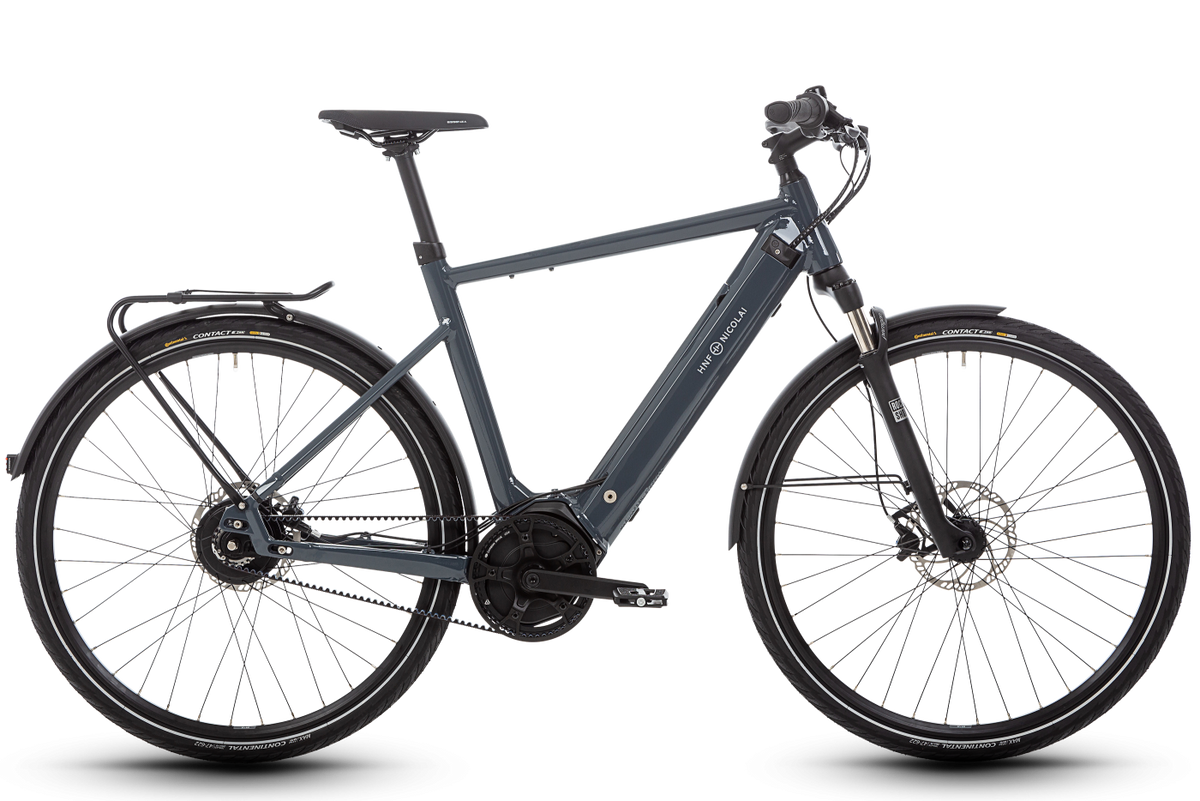

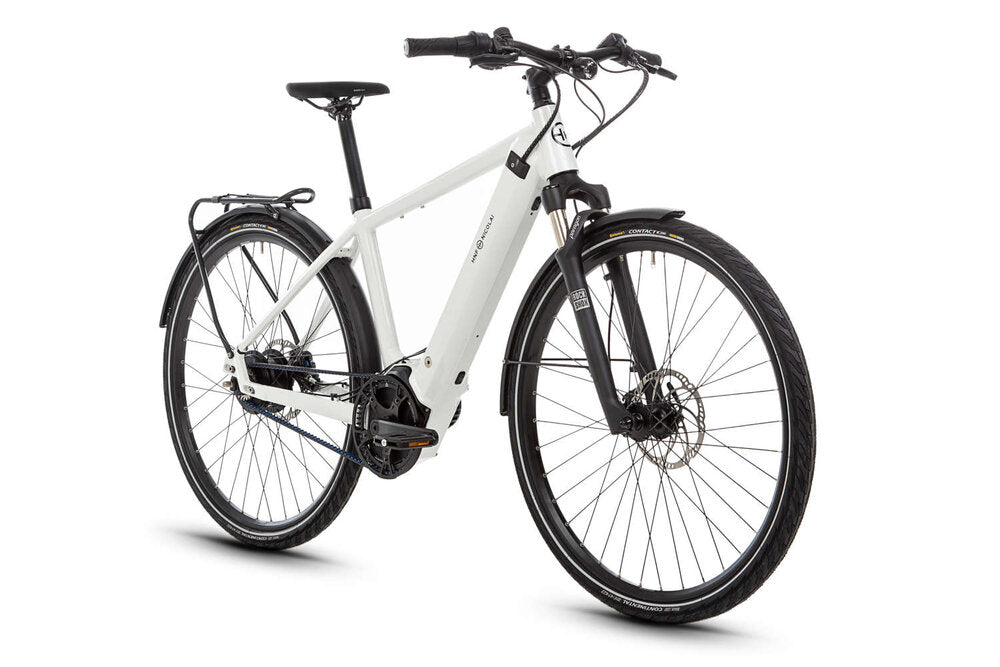

HNF Nicolai SD3 Urban (25km/h)
HNF Nicolai SD3 Urban (25km/h)
Regular price
CHF 5,095.00
Regular price
Sale price
CHF 5,095.00
Unit price
/
per
Choose your equipment
We confirm options and availability in your personal quotation. Your selections will be sent as an enquiry.
Couldn't load pickup availability
The new SD3 Urban.
Light, fast, and agile through your city.
Technical specifications
RAHMEN
MTB 28'' S/M (bis ca. 180cm) oder L/XL (ab ca. 175cm)
MOTOR
Bosch Performance Line

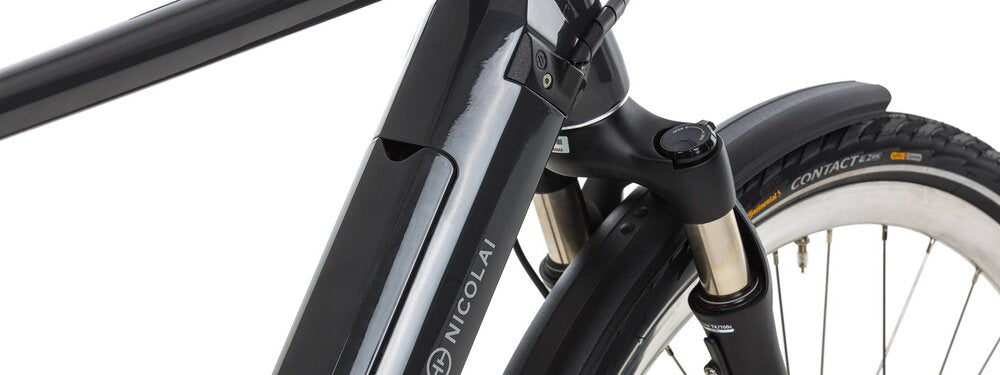

GABEL
ZOOM CH860 60mm / Suntour NEX SF16

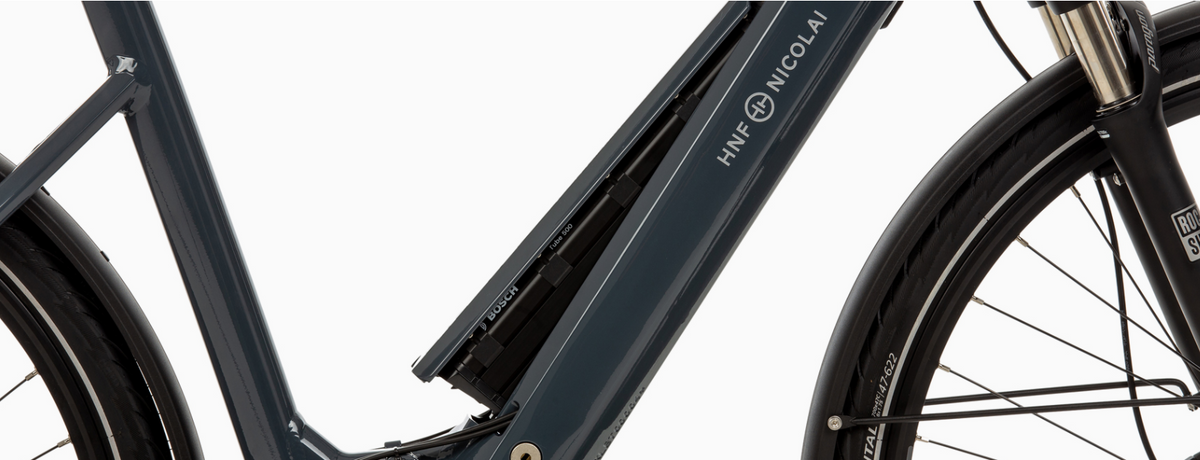

AKKU
Bosch PowerTube 500Wh

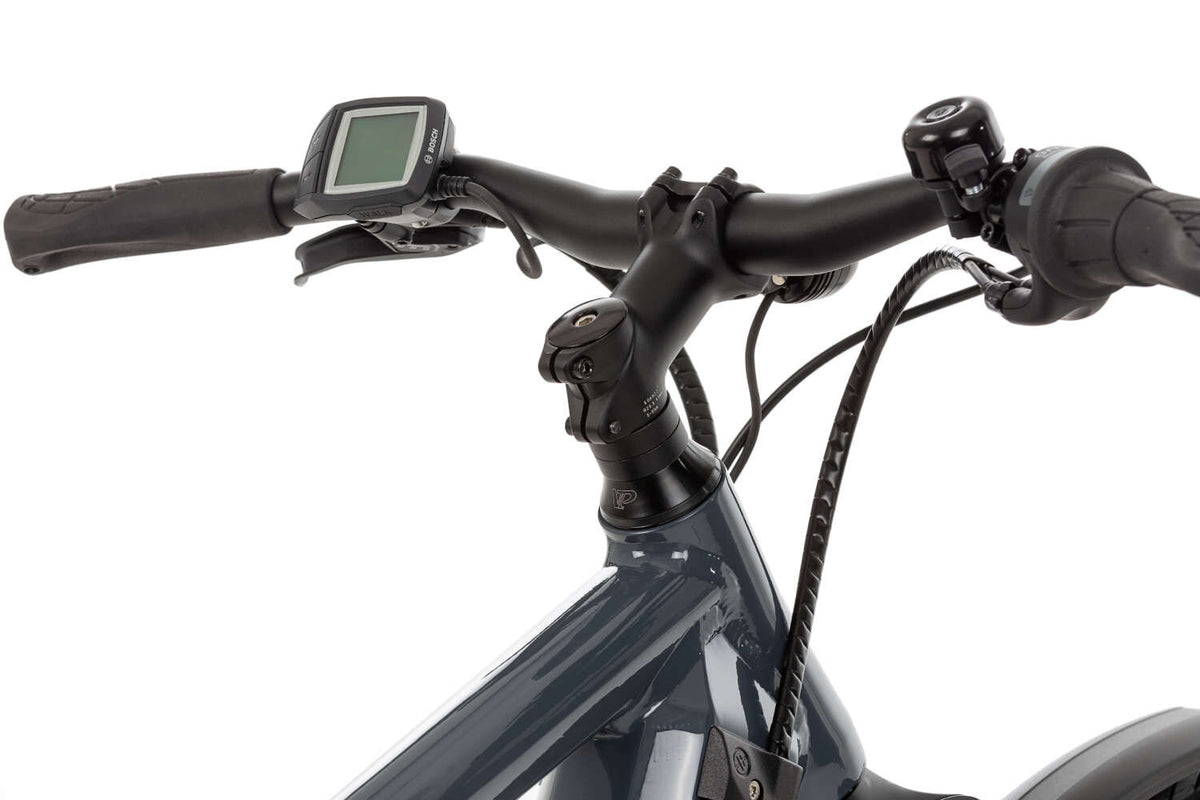

DISPLAY
Bosch Purion. Optional: Kiox, SmartphoneHub, Intuvia, Nyon

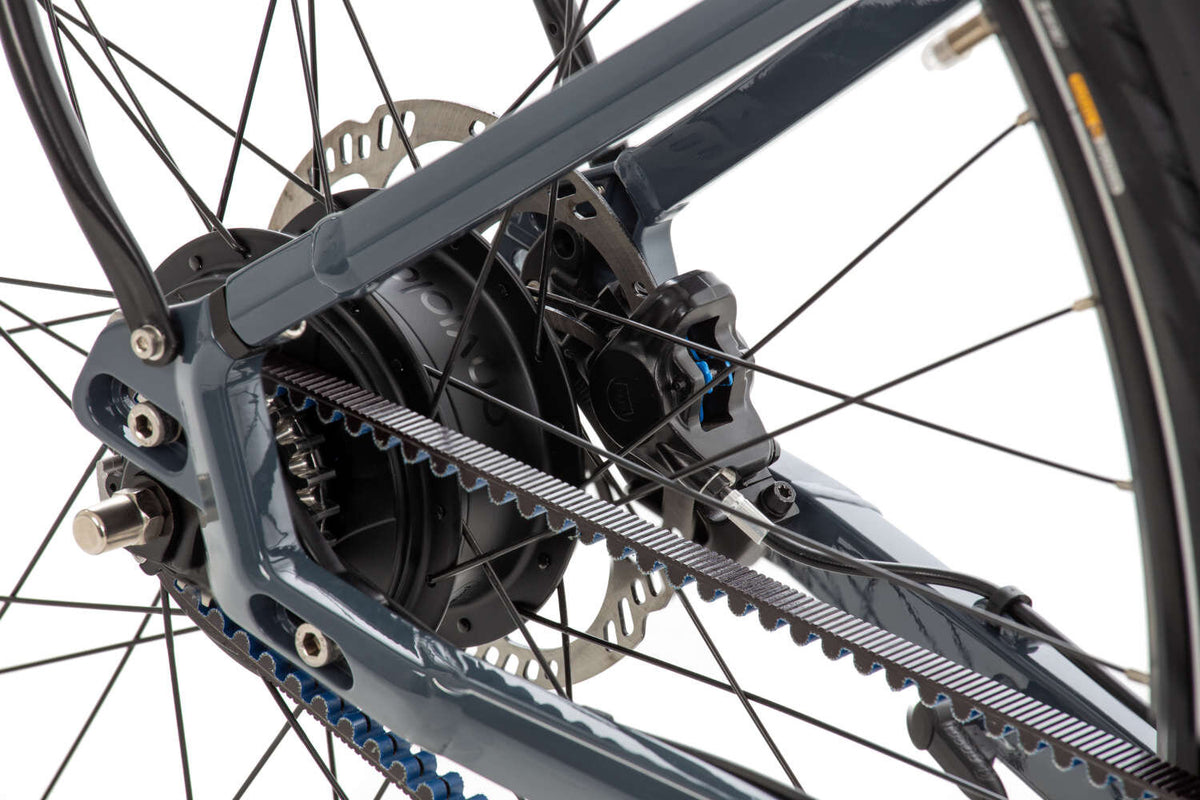

KRAFTÜBERTRAGUNG
Gates Carbon Drive (Carbonriemen)
RIEMENSCHEIBE VORNE
Gates CDX 55T für Bosch
RIEMEN
Gates Carbon Drive Belt 125T
RIEMENSCHEIBE HINTEN
Gates CDX 22T
BREMSEN
Hydraulische Scheibenbremse Magura MT5 - VR 205mm, HR 180mm

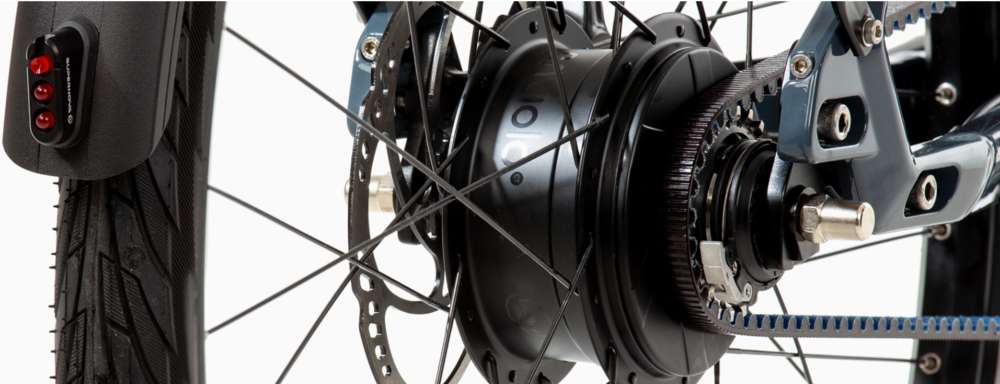

SCHALTUNG
enviolo CVP TR
SCHALTHEBEL
Enviolo

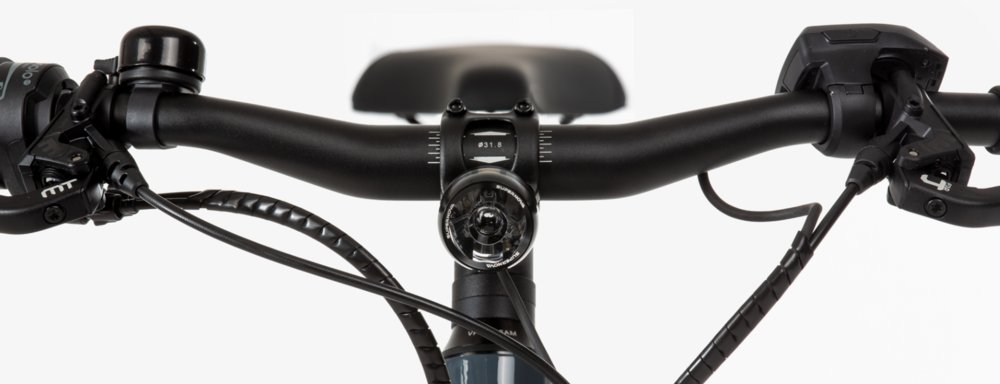

LENKER
Satori H-Bar Noir
VORBAU
Ergotec Swell RE 100mm, winkelverstellbar
SATTEL
Selle Royal Essenza Athletic
SATTELSTÜTZE
Satori Trident 31,6 x 400 mm
KURBEL
Miranda Delta 170
PEDALE
VP Components VP 831P
SCHUTZBLECH | GEPÄCKTRÄGER
Hebie Alumee 52mm / Racktime for HNF, 25kg
BELEUCHTUNG
Supernova MINI 2
REIFEN
Continental Contact Safety 47x622
MAX. GESCHWINDIGKEIT PEDELEC
bis 25 km/h
FARBE
grau | weiss
Geometry
| Measurement | Unit | S/M | L/XL |
|---|---|---|---|
| Seat tube length | mm | 465 | 545 |
| Top tube length | mm | 580 | 605 |
| Head tube length | mm | 130 | 145 |
| Head tube angle | ° | 69 | 69 |
| Seat tube angle | ° | 73 | 73 |
| Chainstay length | mm | 470 | 470 |
| Wheelbase | mm | 1120 | 1146 |
| Stack | mm | 608 | 622 |
| Reach | mm | 394 | 415 |
| BB drop | mm | -55 | -55 |
Price options
| Option | Configuration | Price adjustment |
|---|---|---|
| Size | S/M | No surcharge |
| Size | L/XL | No surcharge |
| Colour | Grey | No surcharge |
| Colour | White | No surcharge |
| Shipping | Switzerland | +120.00 CHF |
