Hibox P1 for Pinion P-Line

The Hibox P1 shift adapter lets you operate a mechanical Pinion P-series gearbox using compatible drop-bar brake/shift levers or the Hibox Trigger T1. Check the correct combination for your bicycle before ordering.

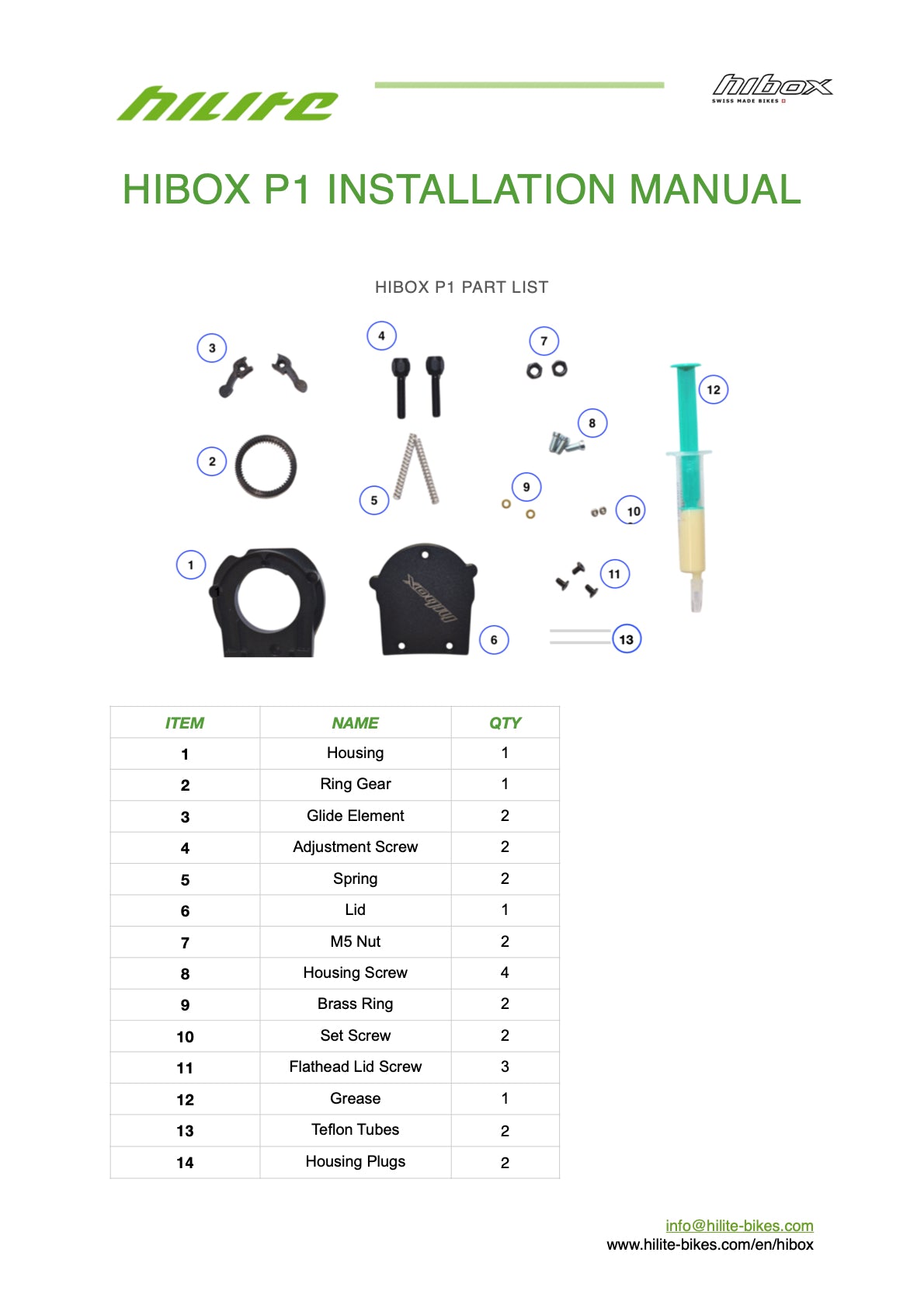

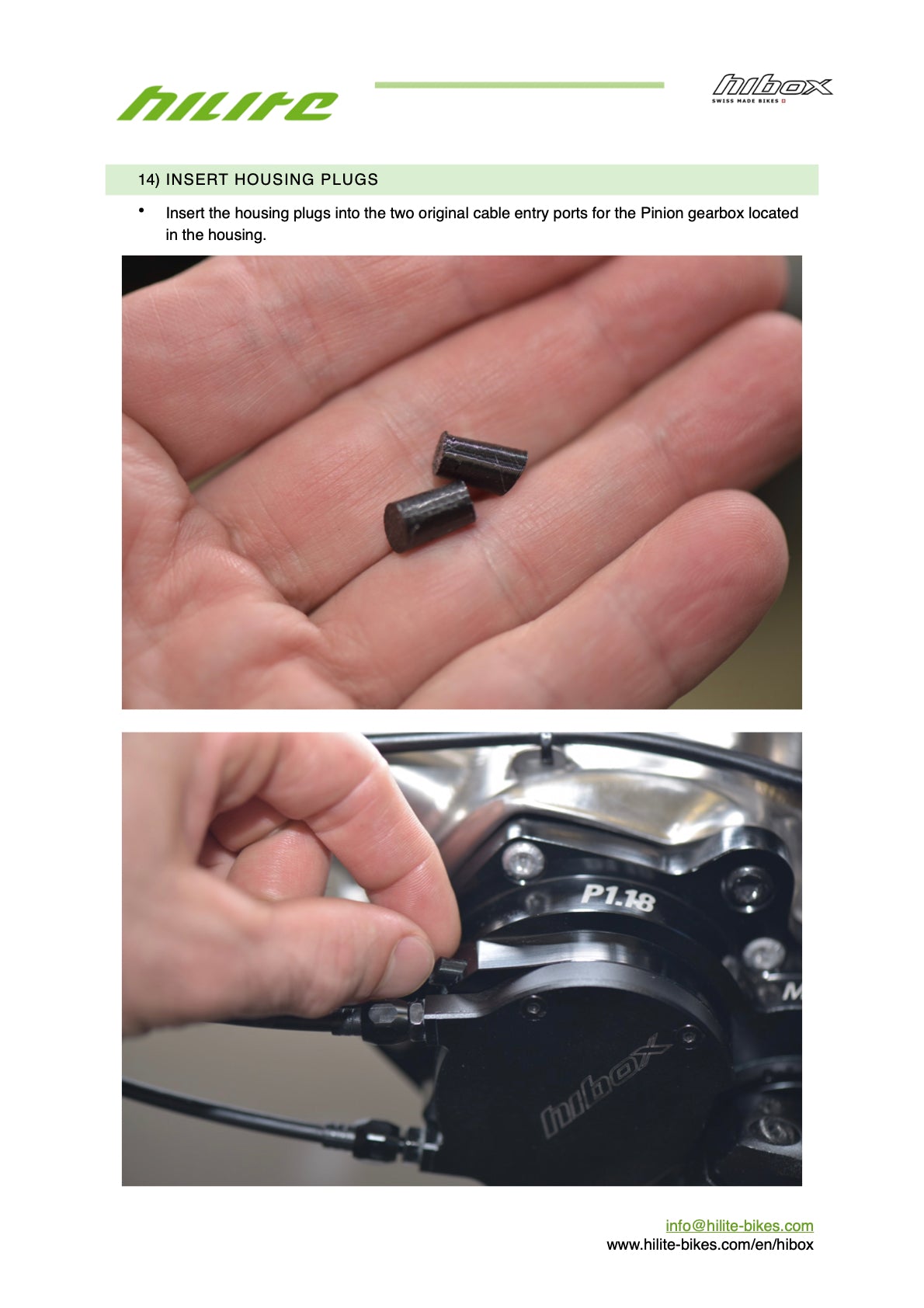

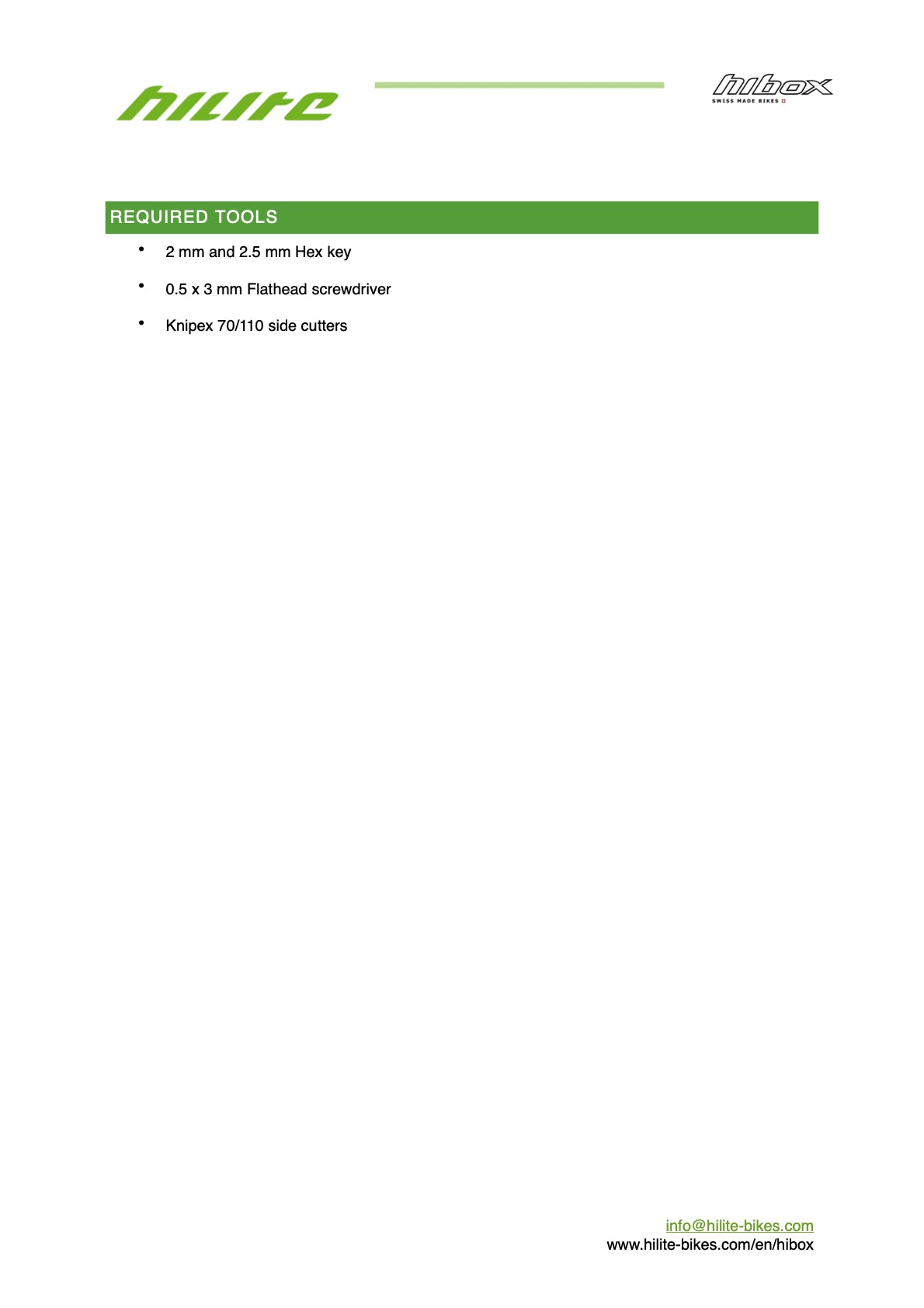

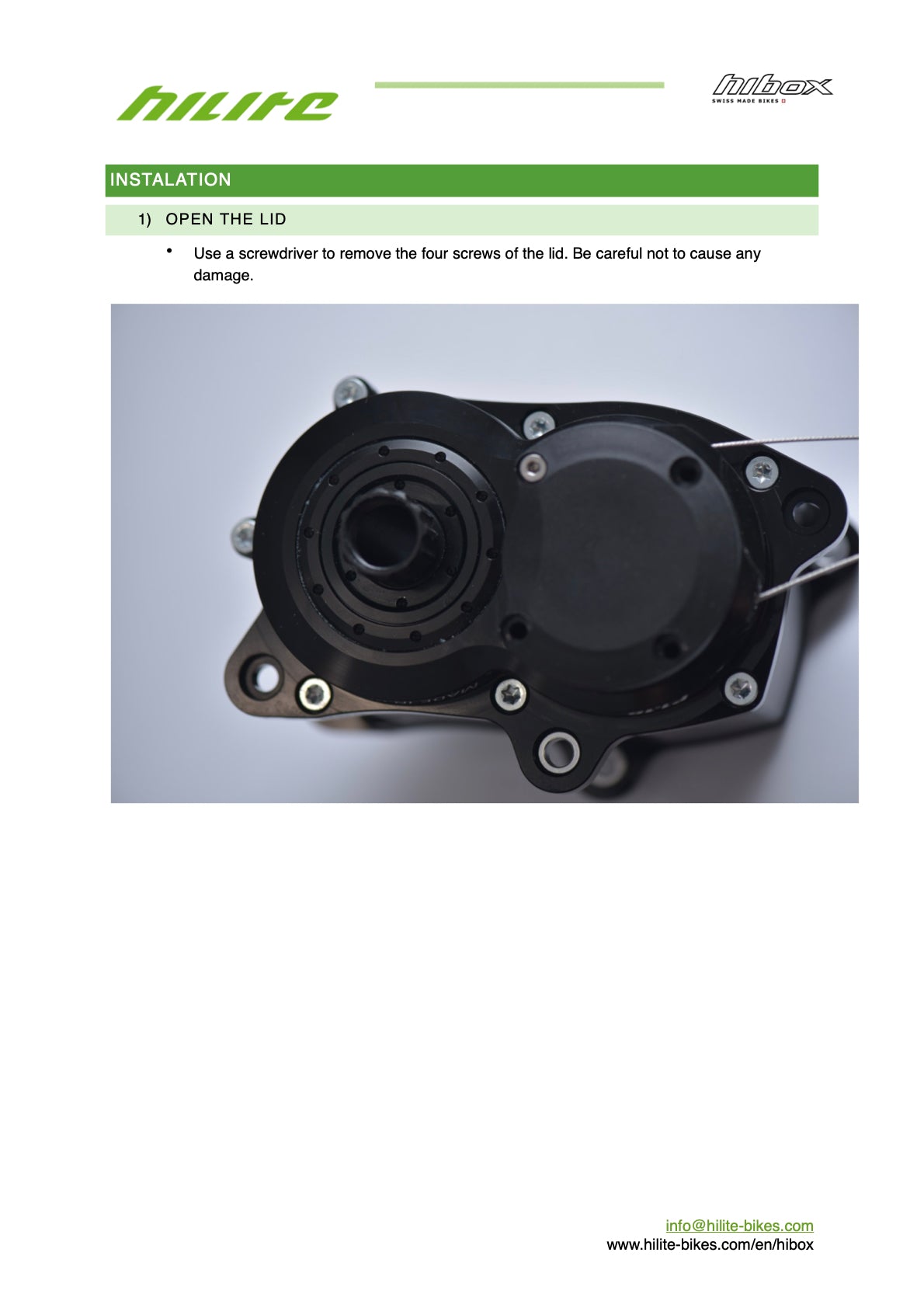

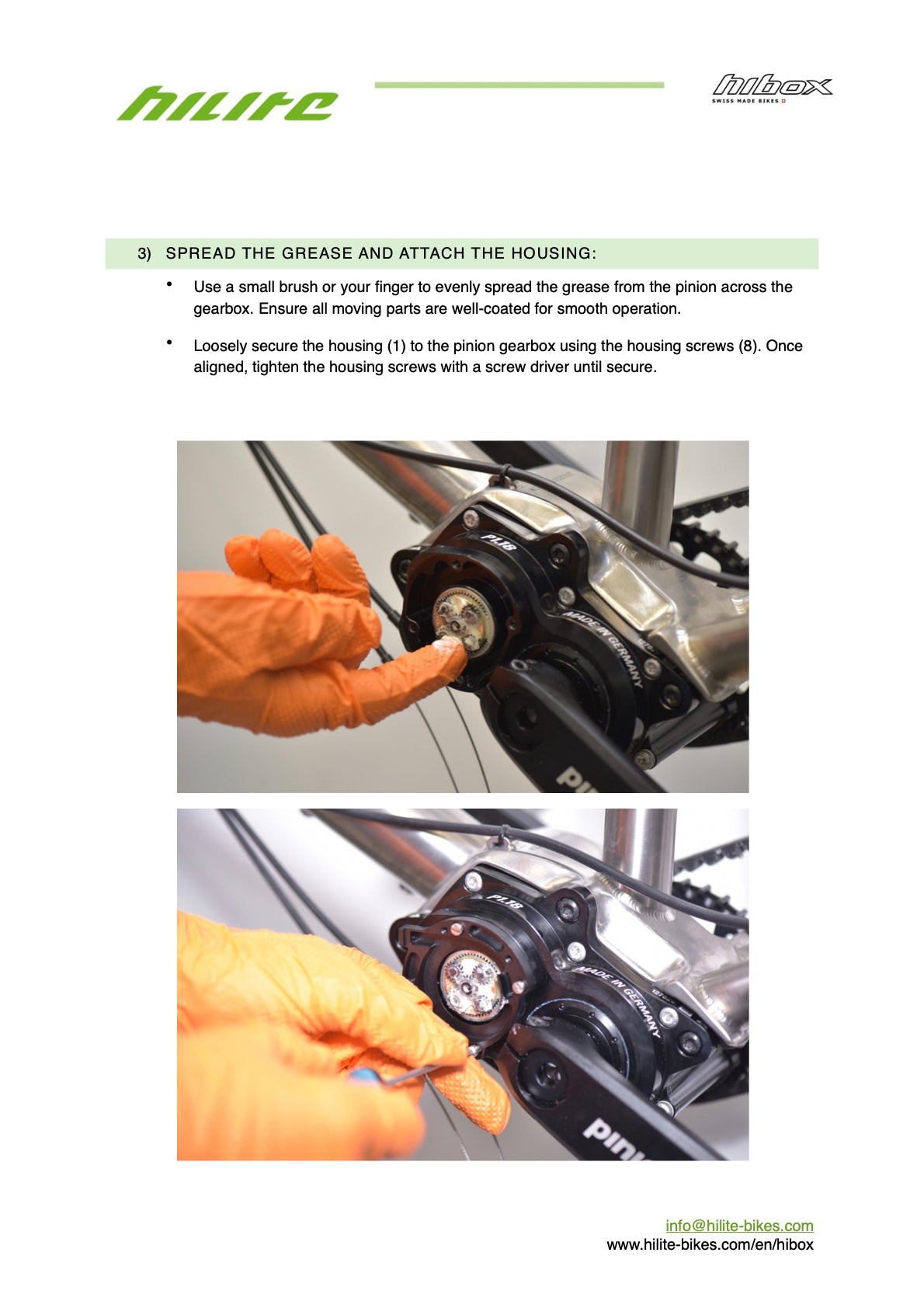

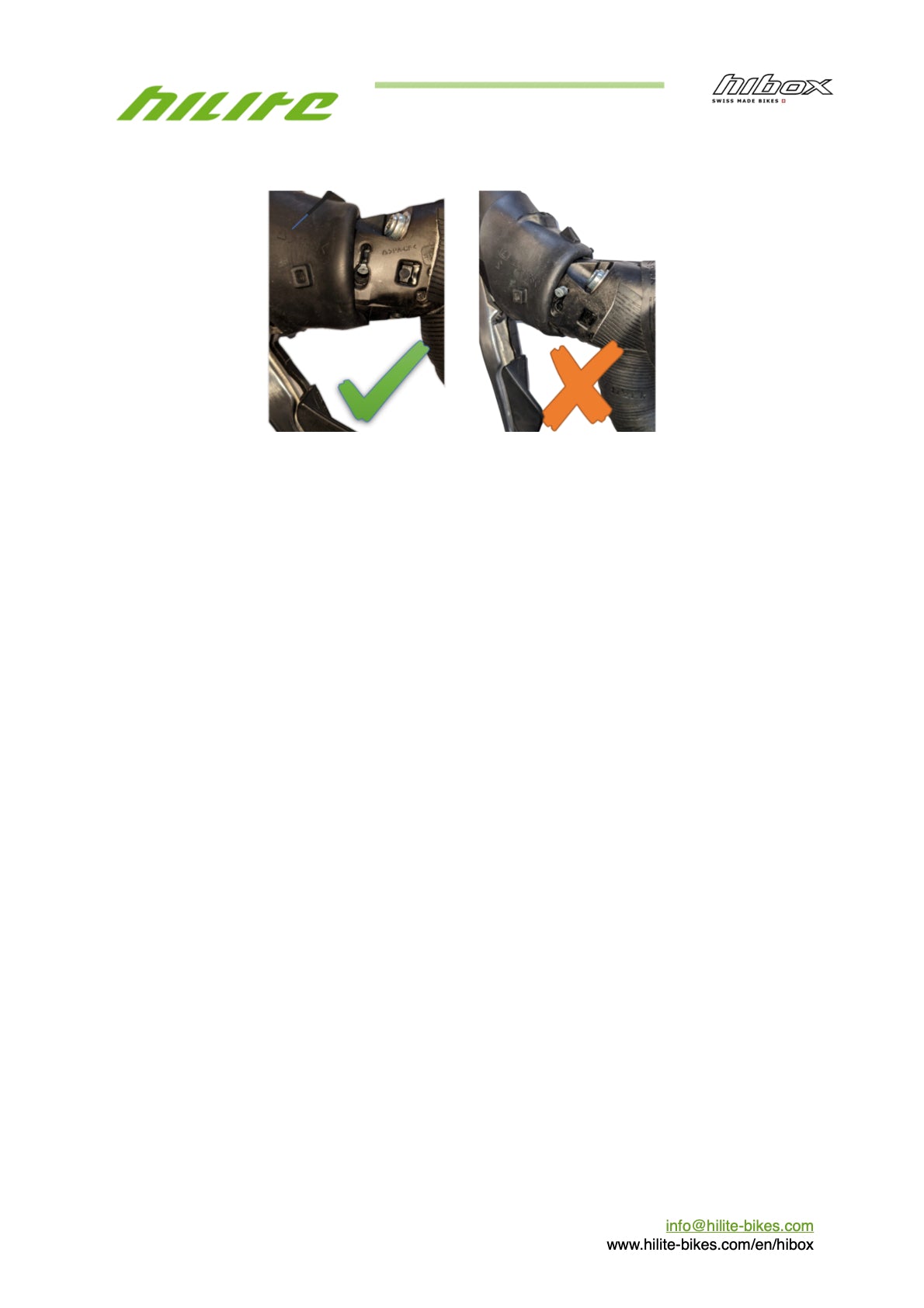

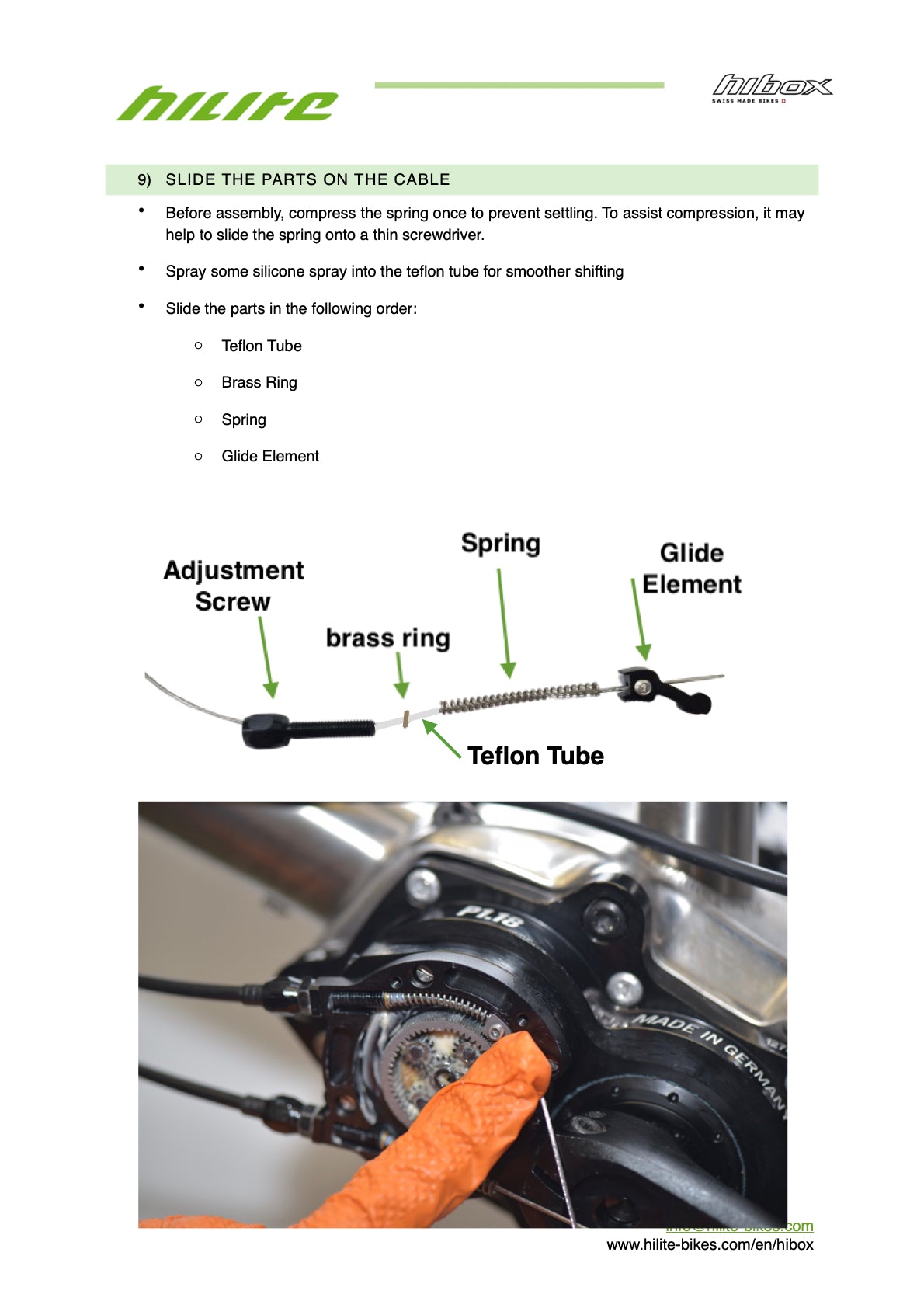

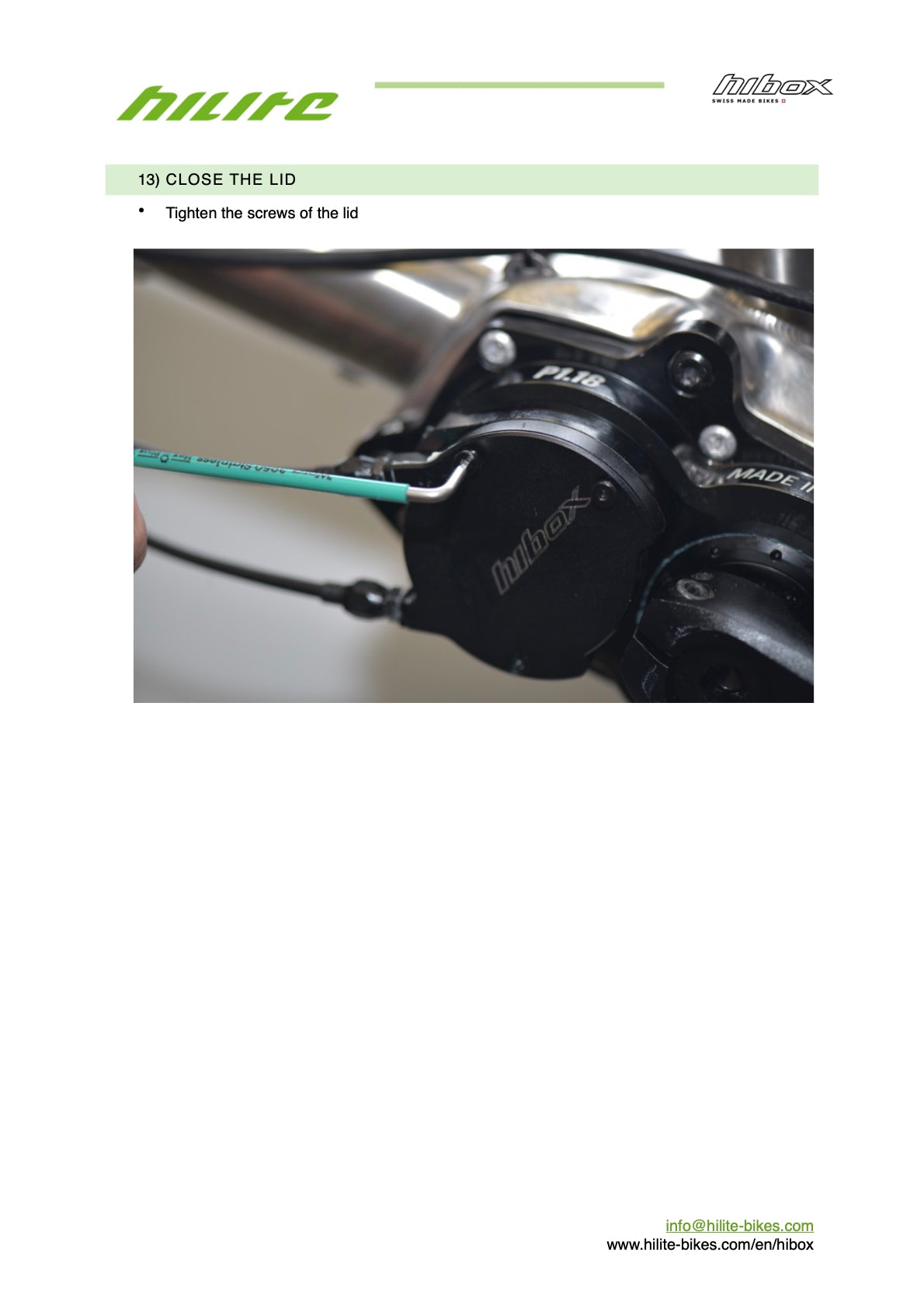

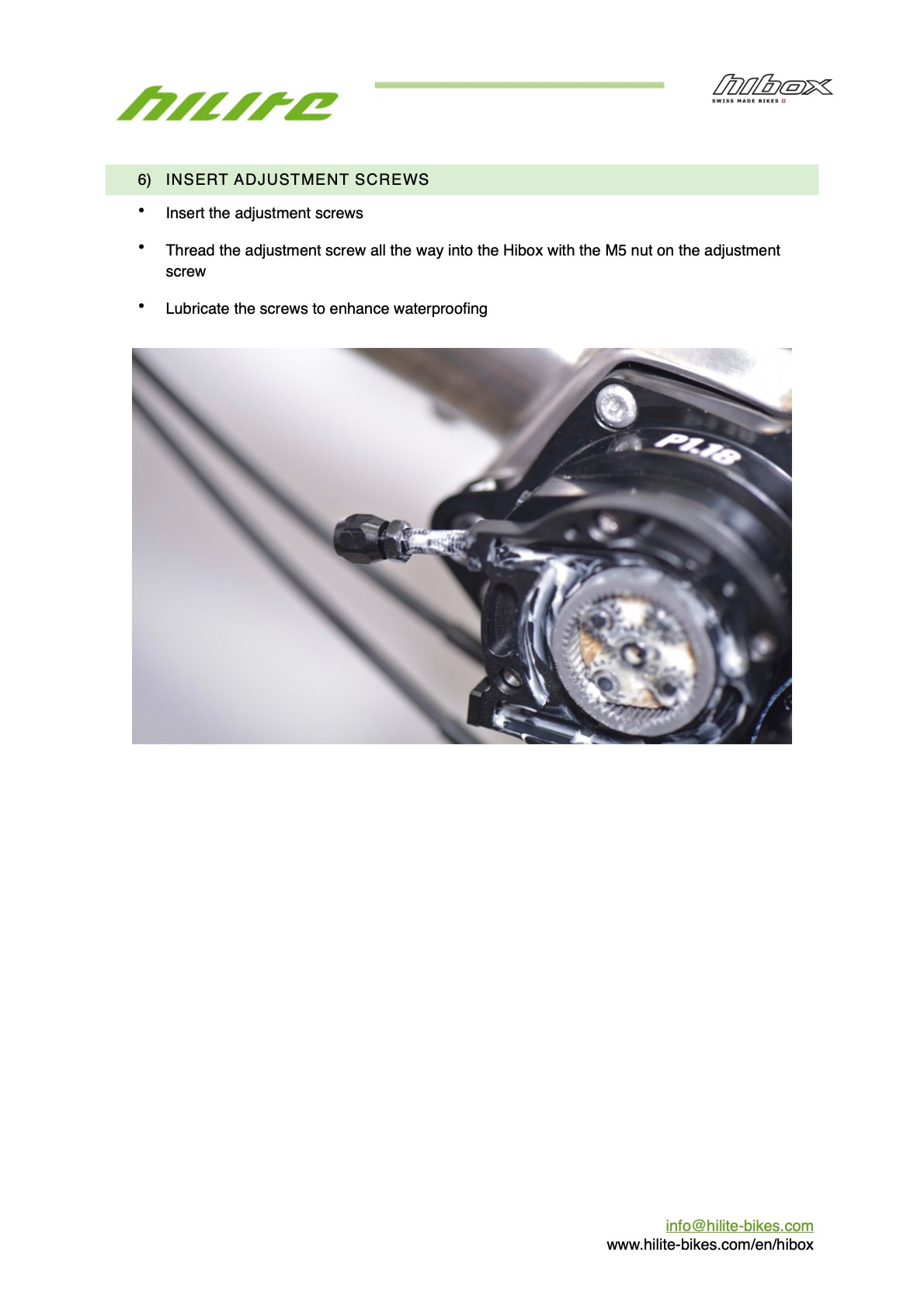

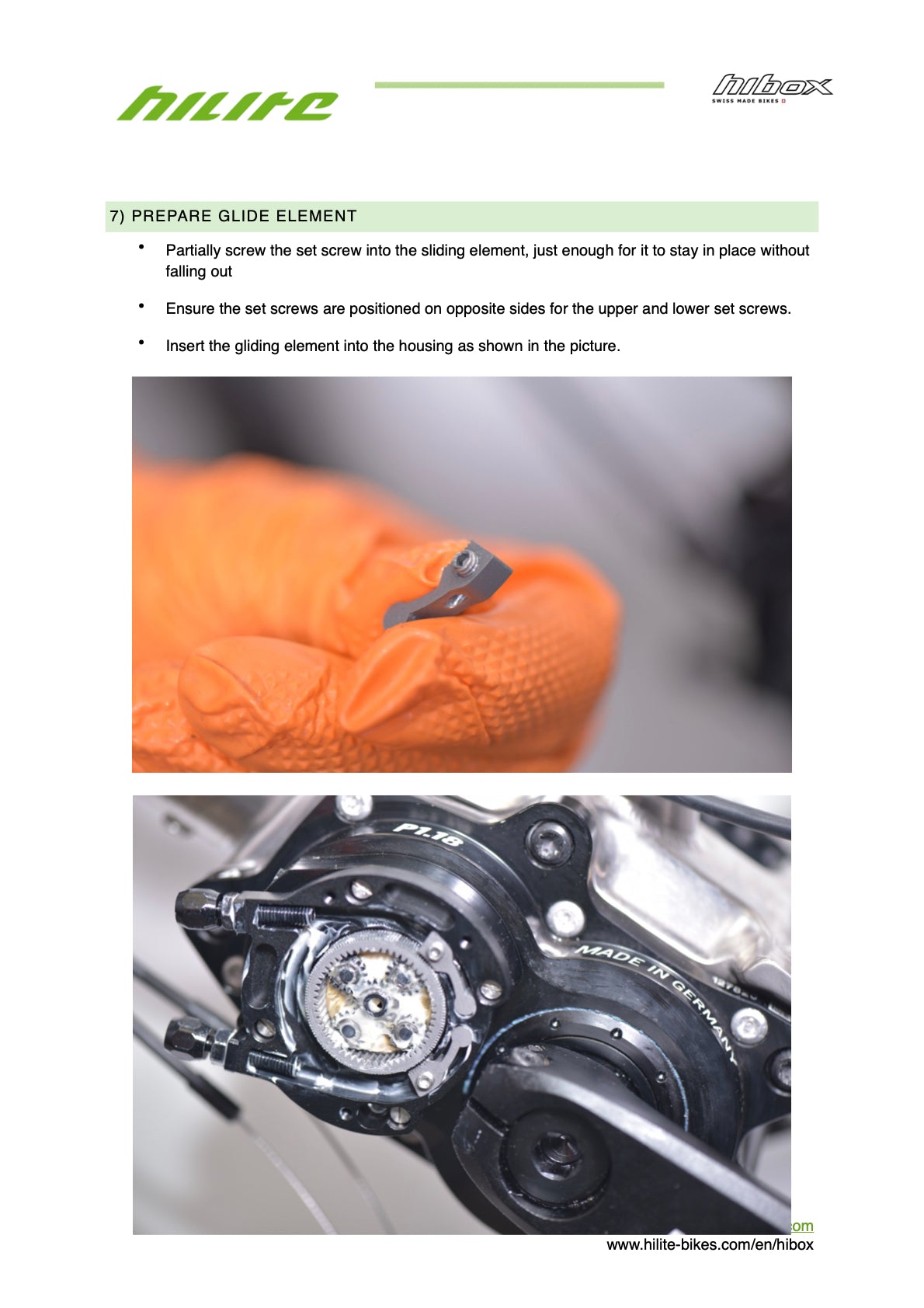

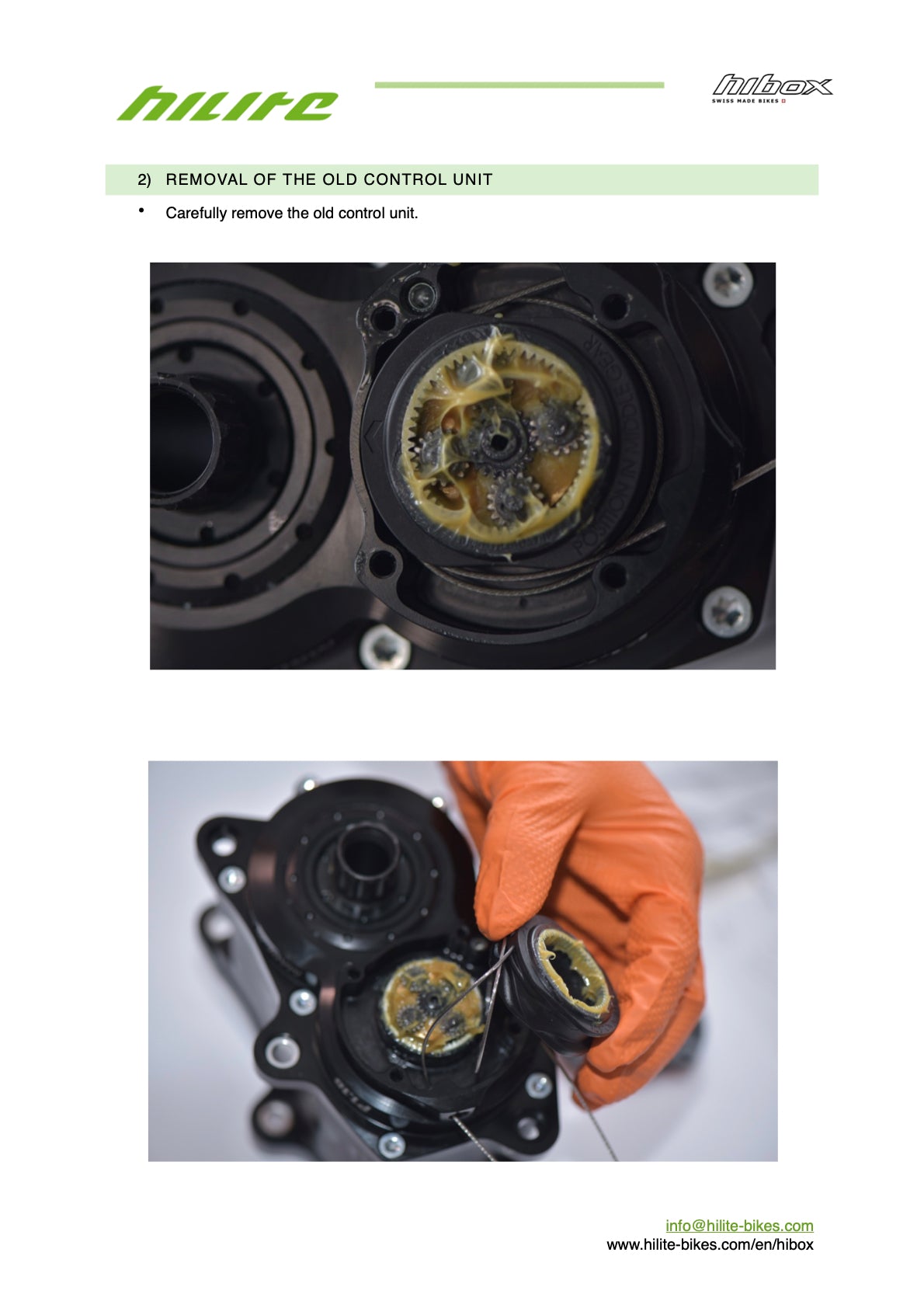

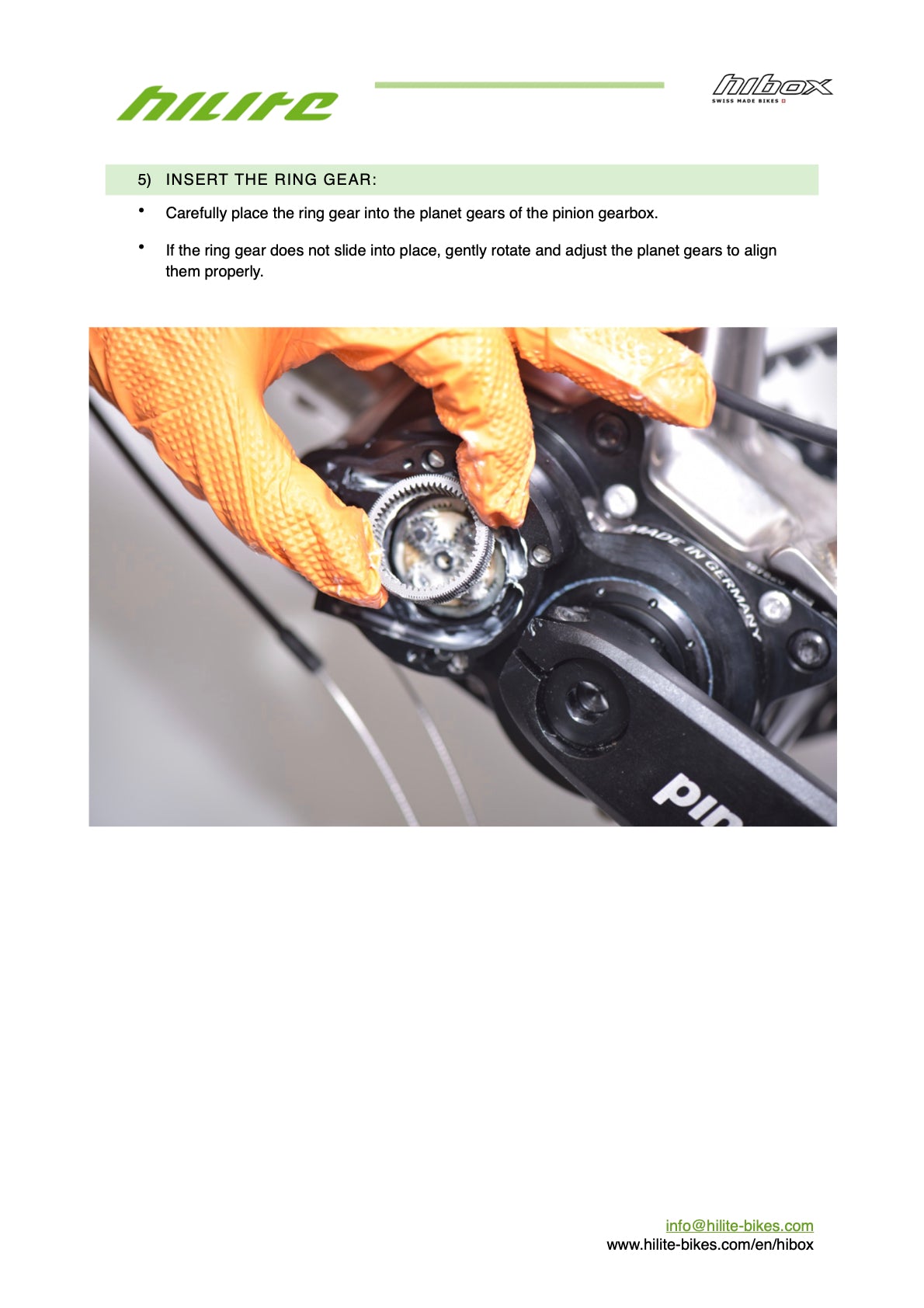

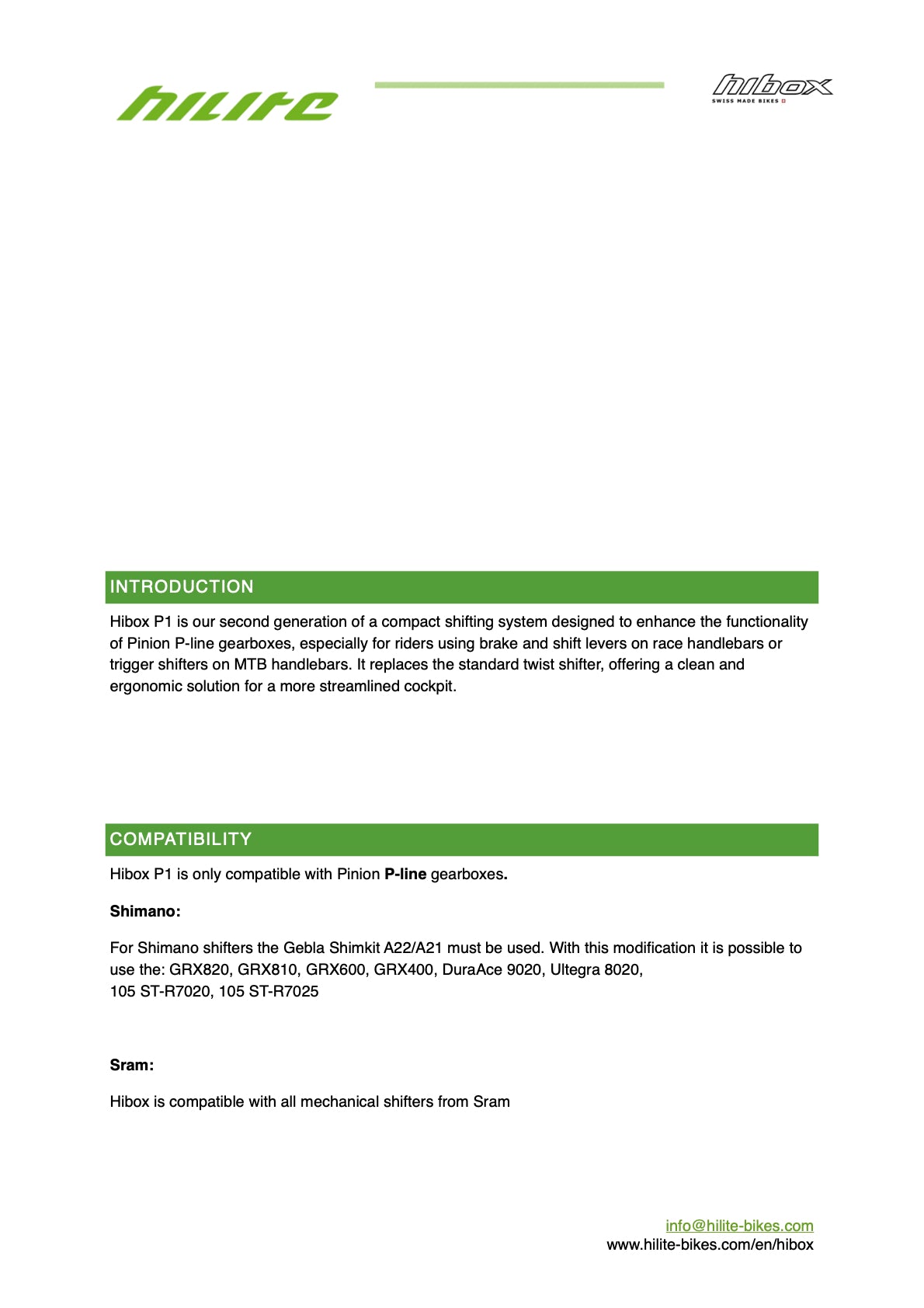

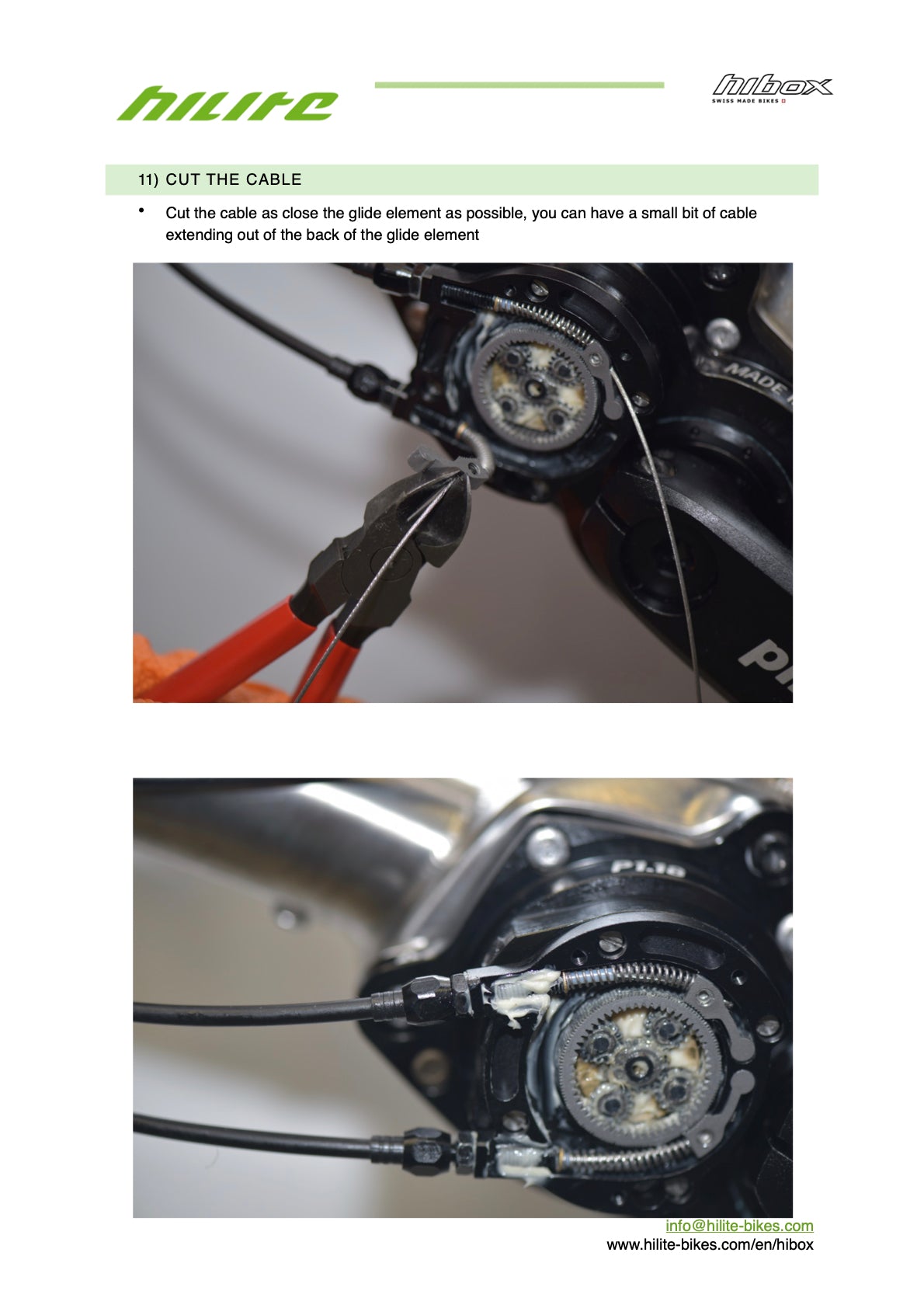

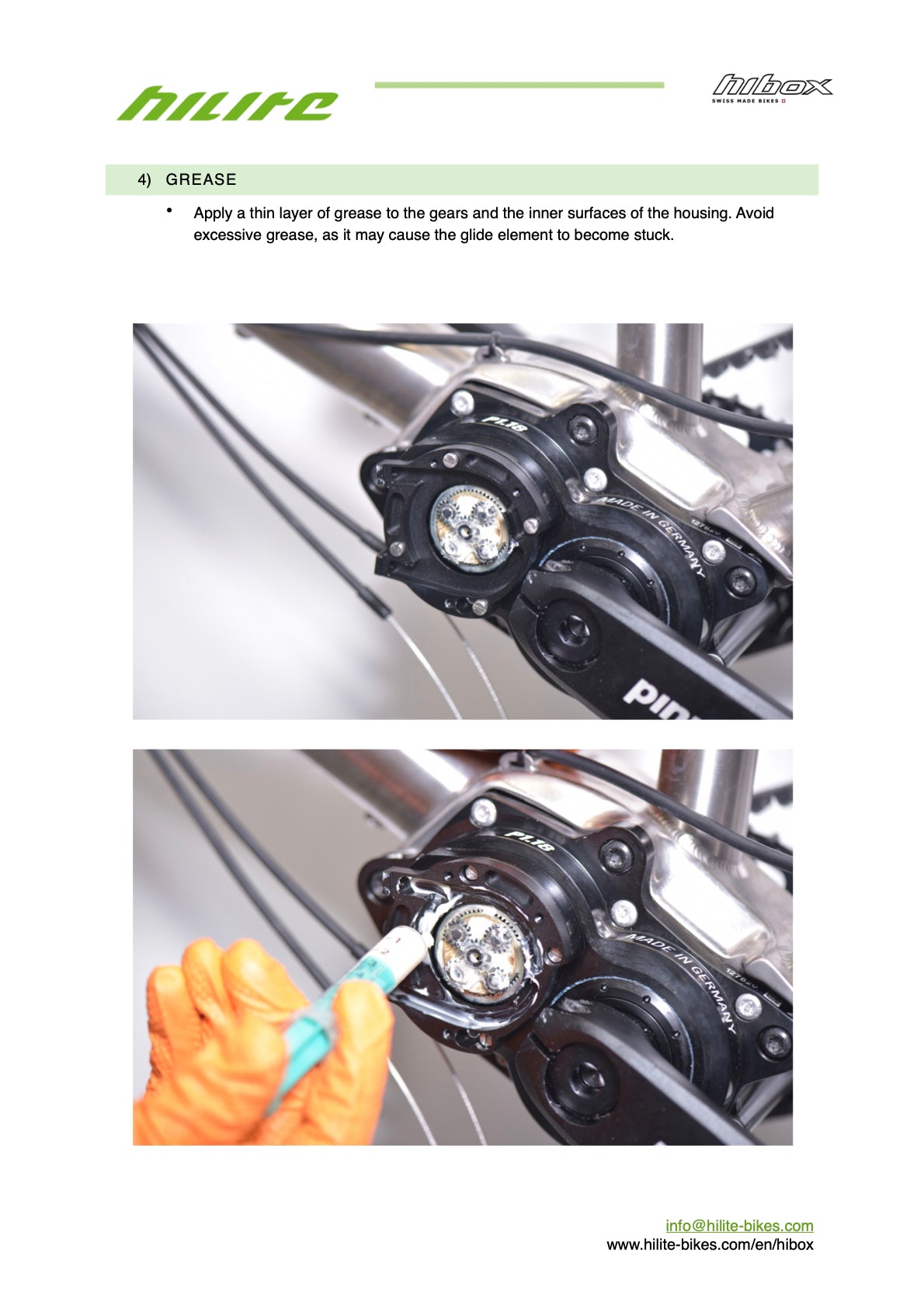

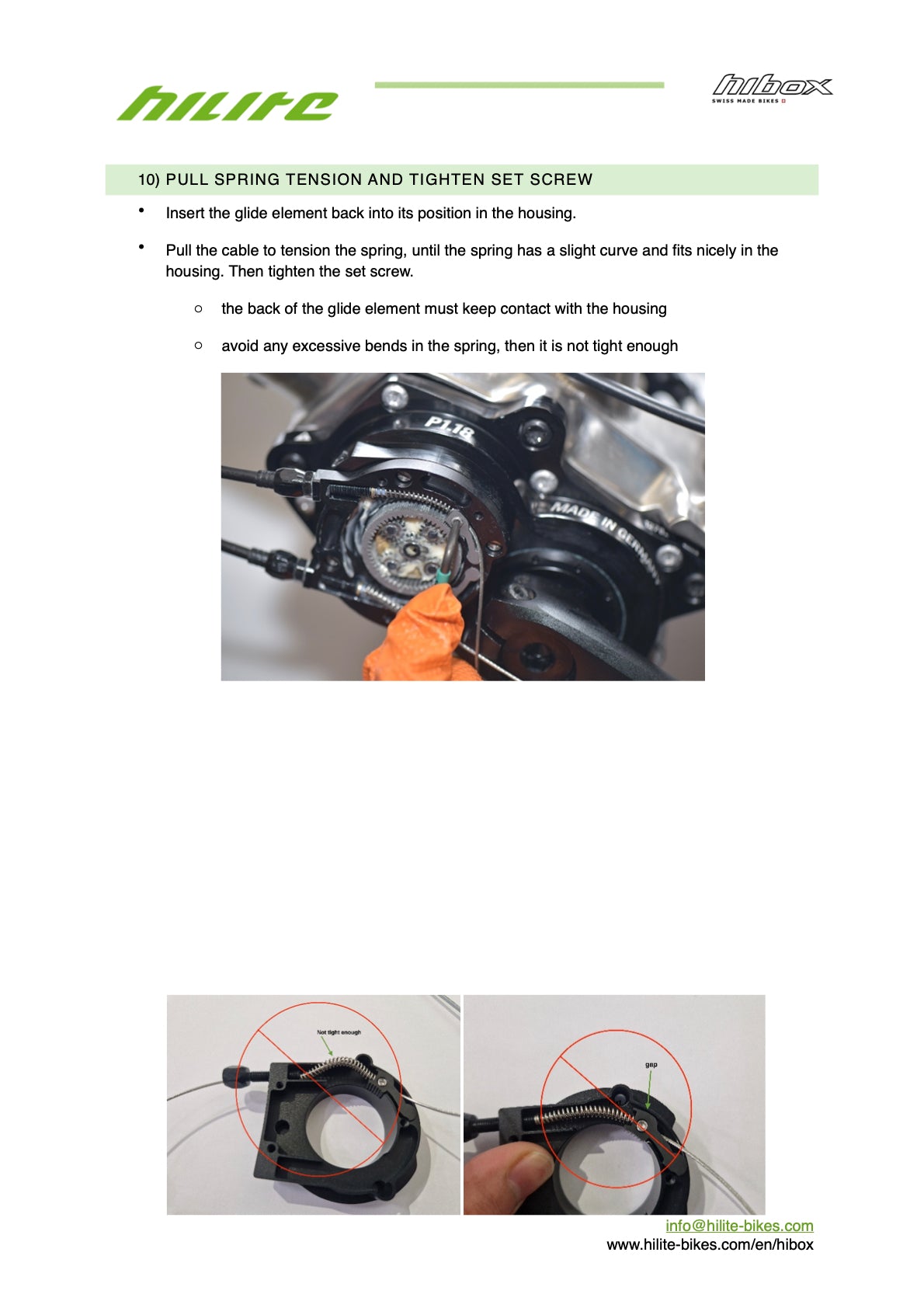

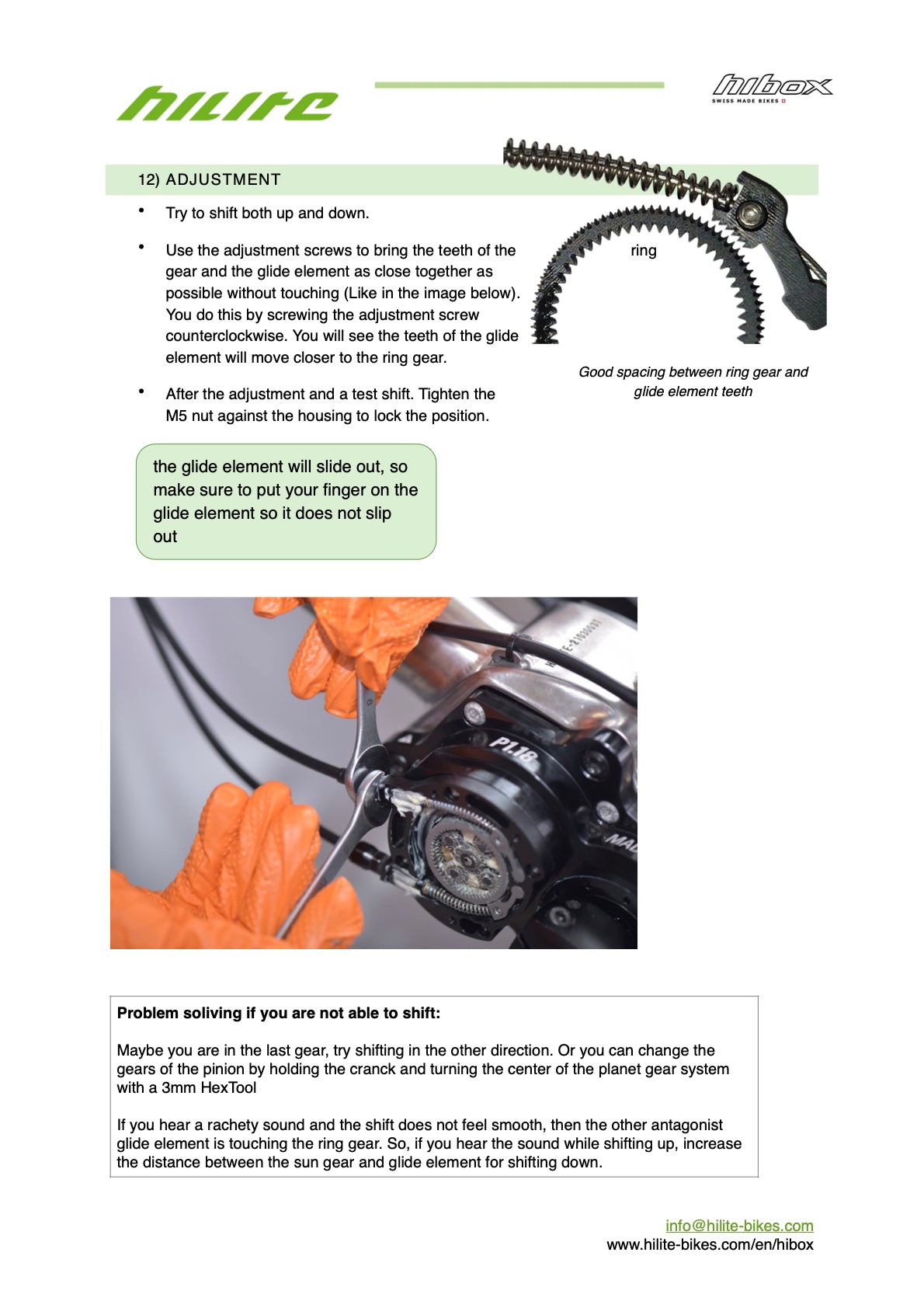

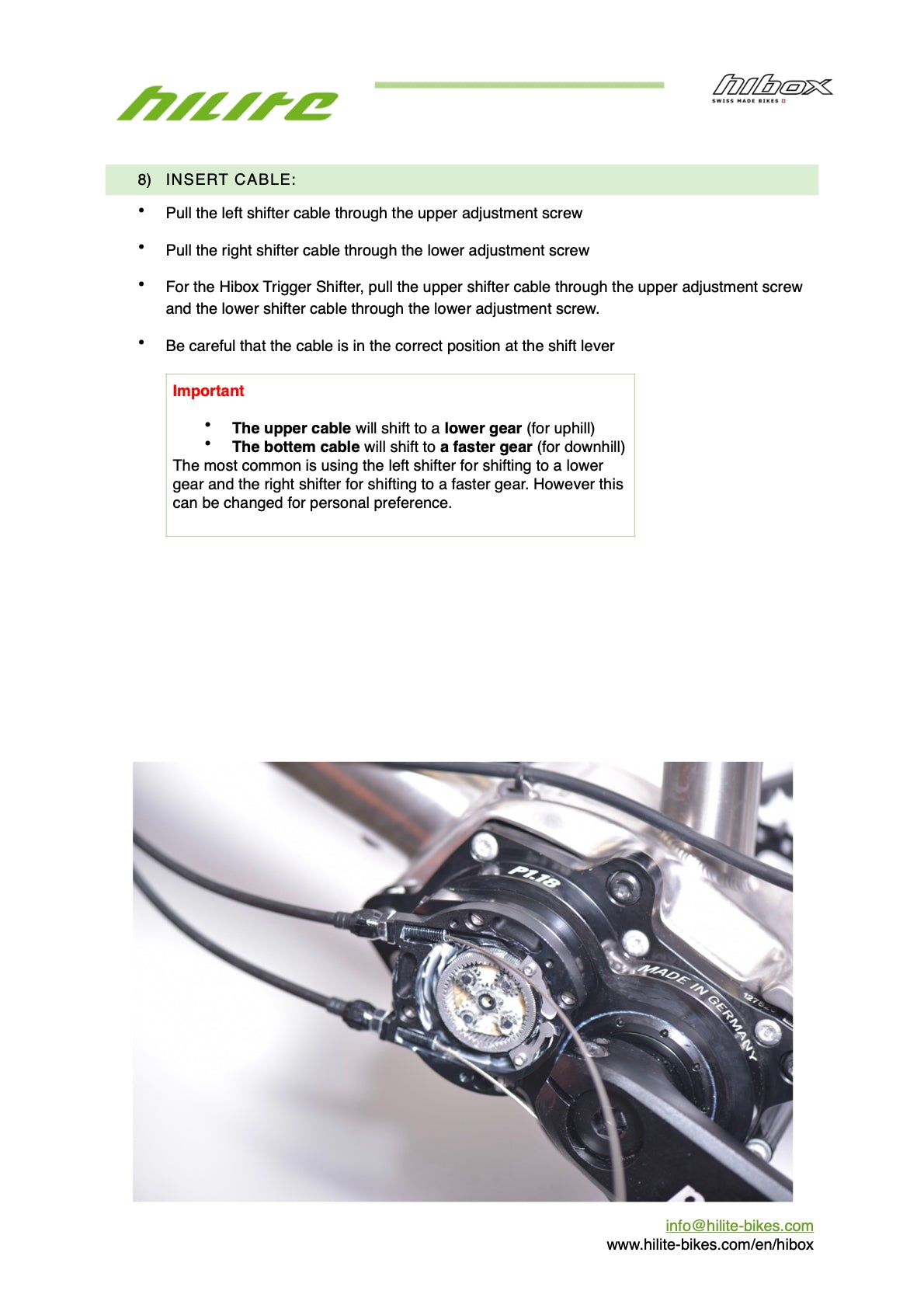

Hibox P1: options and product details Open P1 installation manual

Read the important crank-clearance notice below. For compatibility questions, contact HILITE for advice.

Important installation notice: Pinion P1.18 crank clearance

Older CNC-machined Pinion cranks can sit very close to the HIBOX and may touch it. According to our experience as a dealer, forged Pinion cranks are not affected. Correct axial crank positioning according to Pinion’s instructions is essential.

  1. Tighten the centre screw to 10 Nm.
  2. The remaining 1–2 mm of axial movement on the input shaft is normal and no reason for concern.
  3. Pull the crank fully outward to the stop.
  4. Then tighten both clamp screws alternately and in stages to 6 Nm each.

This positions the crank correctly and maximises clearance to the HIBOX.

Pinion P1.18 crank installation: centre screw 10 Nm, normal 1–2 mm axial movement, pull crank outward to the stop, then tighten clamp screws alternately in stages to 6 Nm each.
Source: Pinion P1.18 Owner’s Manual, page 25. Click the image to enlarge.
